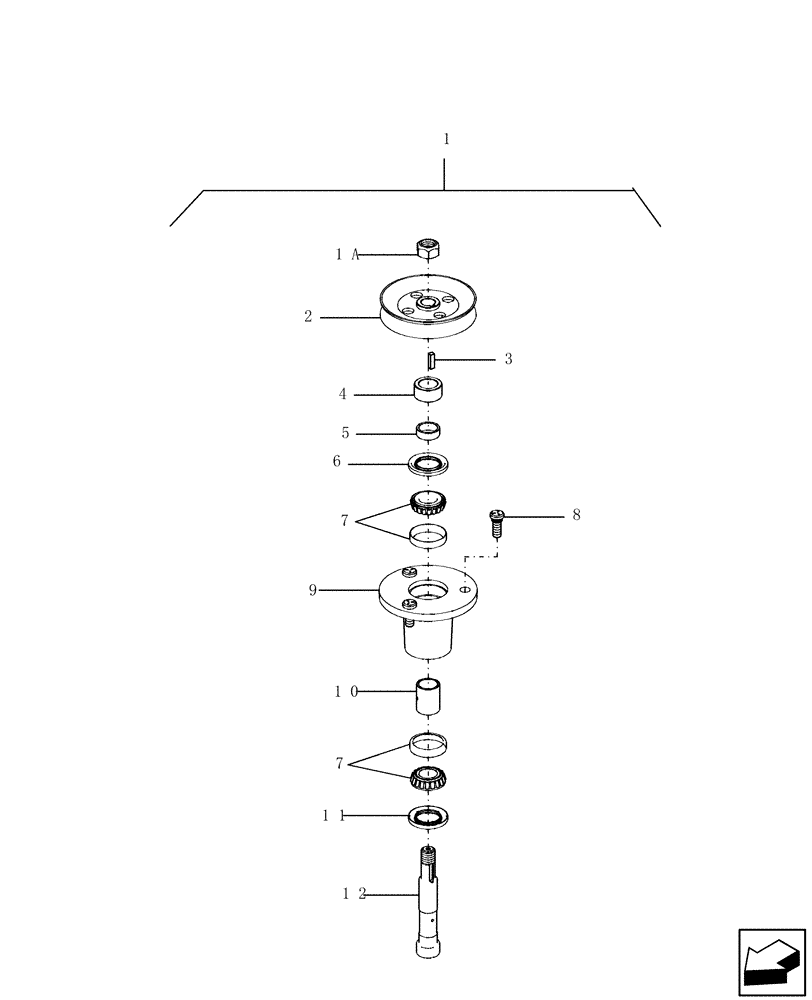

Запчасти Case IH 914A (13) - SPINDLE ASSEMBLY, 84"

1

AUB163004

SPINDLE

Tall 6.25" LH Side

2шт.

1

AUB163003

SPINDLE

Short 5.5" RH Side

2шт.

1a

AUB964024

LOCK NUT

3/4"-16

4шт.

2

AUB07331367

PULLEY

4шт.

3

277124

KEY

1/4" Square x 7/8"

4шт.

4

AUB163009

SPACER

Spindle

2шт.

Used on AUB163004 Spindle Assembly Only

1шт.

5

AUB145557

SPACER

Seal

4шт.

6

AUB145551

SEAL,31.75mm ID x 54.08mm OD x 6.35mm Thk

Upper

4шт.

7

AUB145555

BEARING ASSY

Cup & Cone

8шт.

8

AUB145561

STUD

7/16"-20

12шт.

9

AUB163005

HOUSING

4шт.

10

AUB163007

SPACER,25.78mm ID x 31.75mm OD x 40.83mm L

Preload, 1.608

4шт.

11

AUB145552

SEAL,31.75mm ID x 54.08mm OD x 6.35mm Thk

Lower

4шт.

12

AUB163008

SHAFT

Spindle, Long

2шт.

Used on AUB163004 Spindle Assembly Only

1шт.

12

AUB163006

SHAFT

Spindle, Short

2шт.
