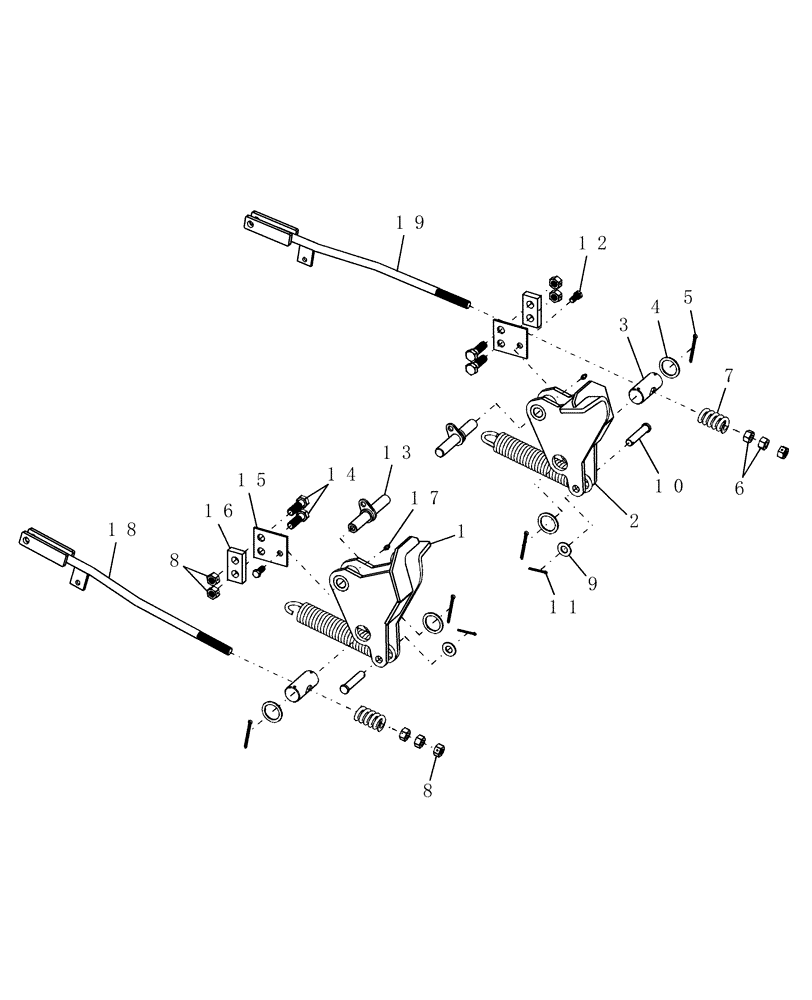

Запчасти Case IH 914A (10.01) - LIFT ARM LINKAGE, 84" ON & ASN DBC0004066

1

CSE163223

ARM, LIFT

LH

1шт.

2

CSE163222

ARM, LIFT

RH

1шт.

3

AUB163729

SPECIAL PIN

Lift

2шт.

4

AUB964511

WASHER

1-1/2" I.D. x 2" O.D.

4шт.

5

PL

PROCURE LOCALLY

Pin, Cotter, 3/16 x 2-1/2"

4шт.

6

429-1012

NUT,3/4"-10, G8

4шт.

7

AUB163185

SPRING

2шт.

8

AUB964033

CROWN NUT

Lock, 3/4"-10

6шт.

9

495-11066

WASHER,5/8", SAE

Flat, 5/8" SAE

6шт.

10

AUB967249

PIN

5/8 x 3"

2шт.

11

432-816

COTTER PIN,1/8" x 1"

2шт.

12

PL

PROCURE LOCALLY

Bolt, 7/16 x 1"

2шт.

13

AUB163219

PIN

2шт.

14

AUB960157

BOLT

5/8 x 2"

4шт.

15

AUB163299

PLATE, SUPPORT

2шт.

16

AUB163538

SPACER

2шт.

17

219-10

LUBE NIPPLE,1/4" - 28 NPTF

Fitting, Grease, 1/4"

2шт.

18

CSE163728

CONNECTING LINK

LH Rear

1шт.

19

CSE163726

CONNECTING LINK

RH Rear

1шт.
