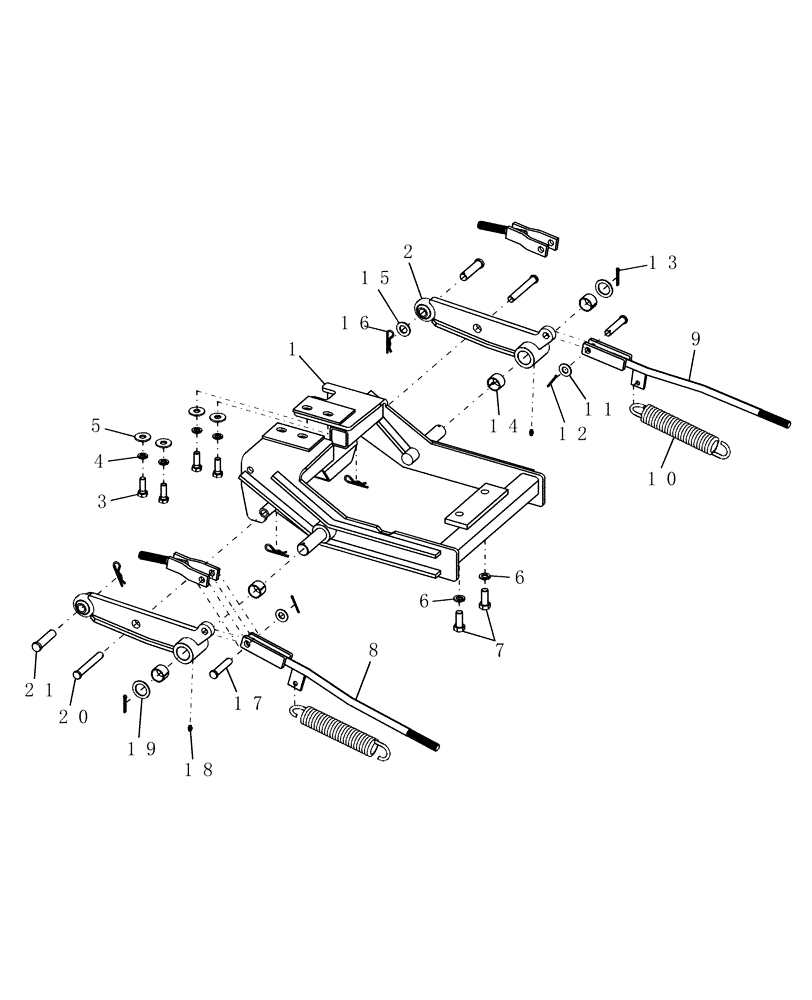

Запчасти Case IH 914A (09.01) - LIFT LINKAGE, REAR, 84" ON & ASN DBC0004066

1

CSE163145

FRAME

Mounting, Rear

1шт.

2

CSE163140

ARM, LIFT

Rear

2шт.

3

PL

PROCURE LOCALLY

Bolt, 14 mm x 1.5 x 40 mm

4шт.

4

PL

PROCURE LOCALLY

Lockwasher, 14 mm

4шт.

5

PL

PROCURE LOCALLY

Washer, Flat, 14 mm

4шт.

6

E630176S71

LOCK WASHER

16 mm

2шт.

7

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

2шт.

8

CSE163728

CONNECTING LINK

LH

1шт.

9

CSE163726

CONNECTING LINK

RH

1шт.

10

AUB250083

SPRING

2шт.

11

495-11066

WASHER,5/8", SAE

Flat, 5/8" SAE

2шт.

12

432-816

COTTER PIN,1/8" x 1"

2шт.

13

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

14

AUB163298

BEARING LINER

4шт.

15

AUB964500

WASHER

Flat, 3/4" SAE

2шт.

16

AUB967003

CLIP

Hairpin

2шт.

17

AUB967249

PIN

5/8 x 3"

2шт.

18

219-10

LUBE NIPPLE,1/4" - 28 NPTF

Fitting, Grease, 1/4"

2шт.

19

AUB964514

WASHER

1-1/4 I.D. x 1-7/8 O.D.

2шт.

20

AUB967179

PIN,15.77mm OD x 119.63mm L

5/8 x 4-1/2"

2шт.

21

AUB967126

PIN,18.95mm OD x 82.55mm L

3/4 x 3"

2шт.
