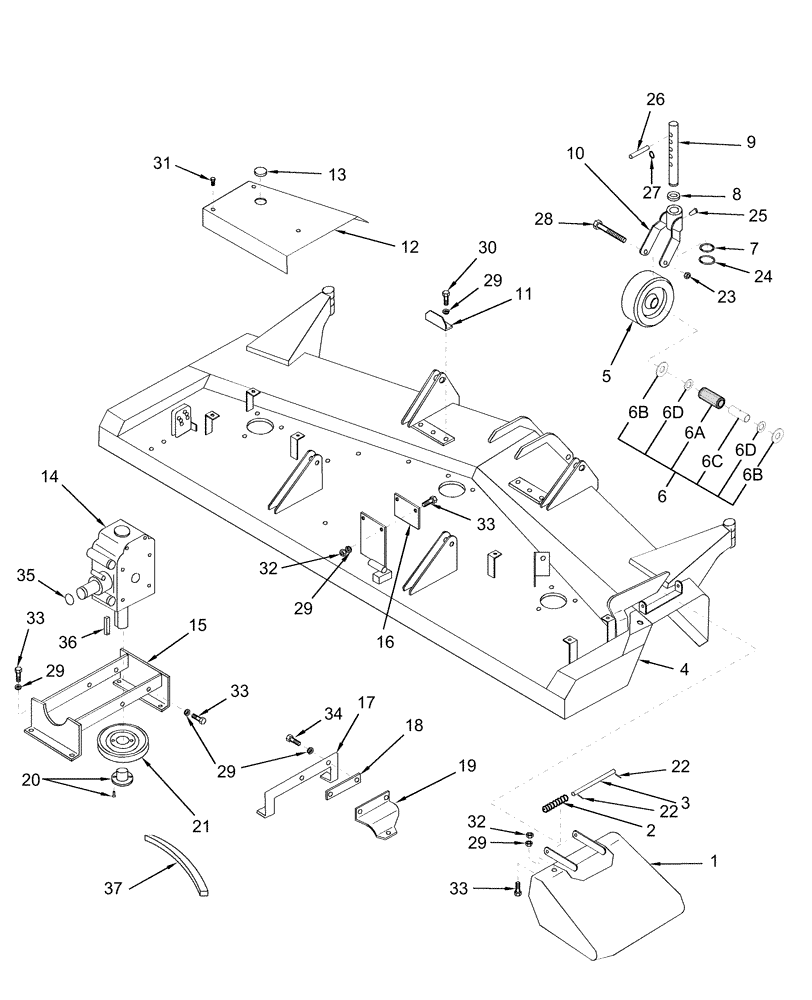

Запчасти Case IH 914A (01) - DECK COMPONENTS, 60" & 72" , SIDE DISCHARGE

1

AUB164089

SHIELD

Discharge, 60"

1шт.

1

AUB164094

SHIELD

Discharge, 72"

1шт.

Includes Necessary Decals, See Fig. 17

1шт.

2

AUB160052

SPRING

Torsion

1шт.

3

AUB160058

PIN

Deflector Hinge

1шт.

4

CSE164060

MOWER DECK

Deck, 60"

1шт.

Includes Necessary Decals, See Fig. 17

1шт.

4

CSE164072

MOWER DECK

Deck, 72"

1шт.

Includes Necessary Decals, See Fig. 17

1шт.

5

AUB121712

WHEEL BEARING KIT

w/Tire Includes: Ref. 6

2шт.

6

AUB121865

BEARING ASSY

Kit, Wheel Bearing Includes: Ref. 6A-6D

1шт.

6a

NSS

NOT SOLD SEPARAT

Bearing

1шт.

6b

NSS

NOT SOLD SEPARAT

Thrust Washer

2шт.

6c

NSS

NOT SOLD SEPARAT

Spanner

1шт.

6d

NSS

NOT SOLD SEPARAT

Seal-Retainer

2шт.

7

AUB314167

RING

1.0 ID x 1-1/2" OD

2шт.

8

AUB161860

SPACER

Gauge Wheel Spindle

2шт.

9

AUB162767

SHAFT

Gauge Wheel Spindle

2шт.

10

CSE161864

BRACKET

2шт.

11

CSE162288

BUMPER

2шт.

Use with 72" only, when the tractor is eqiupped with large Ag. Tires.

1шт.

12

AUB164095

SHIELD

Belt, LH, 60"

1шт.

12

AUB164026

SHIELD

Belt, LH, 72"

1шт.

12

CSE164076

SHIELD

Belt, RH, 60"

1шт.

12

CSE164024

COVER

Belt, RH, 72"

1шт.

13

AUB160118

PLUG

3шт.

14

CSE162131

GEARBOX ASSY

1шт.

14

84279411R

REMAN-GEARBOX

Reman for new P/N CSE162131

1шт.

14

84279411C

CORE-GEARBOX

Return Number

1шт.

15

CSE160552

FRAME

1шт.

16

CSE162148

BUMPER

Stop, Rear Extension, 72"

1шт.

Use with 72" only, when the tractor is eqiupped with large Ag. Tires.

1шт.

17

CSE164055

BRACKET

Gearbox Mount, LH, 60"

1шт.

18

AUB162149

BAR

Gearbox Mount, LH, 60"

1шт.

19

CSE162113

BRACKET

Gearbox Mount, RH, 60"

1шт.

20

AUB140430

HUB

w/Fasteners

1шт.

21

AUB147454

PULLEY

B, 6.9" OD, 60"

1шт.

21

AUB161813

PULLEY

B, 5.9" OD, 72"

1шт.

22

38-31016

PIN,5/32" x 1", Coiled

2шт.

23

232-4148

NUT,1/2"-13, GC

2шт.

24

100-1698

SNAP RING,#98, Ext

2шт.

25

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

26

86551409

PIN

3/8" x 2-1/8"

2шт.

27

AUB967057

RING

2шт.

28

35982

BOLT,Spcl, 1/2" x 3 3/4", Drilled

HH, Drilled, G5, 1/2"-13 x 3-3/4"

2шт.

29

492-11038

LOCK WASHER,3/8"

15шт.

30

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

31

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

60"

6шт.

31

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

72"

8шт.

32

425-106

NUT,3/8"-16, Cl 5

4шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

60"

9шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

72"

5шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

60"

2шт.

34

PL

PROCURE LOCALLY

BOLT, 3/8"-16 x 1-1/4" - 72"

4шт.

35

100-11100

SNAP RING,#100, Ext

1шт.

36

87477

KEY

Square, 1/4" x 1"

1шт.

37

AUB161355

V-BELT

60"

1шт.

37

AUB161711

V-BELT

72"

1шт.

38

AUB162909

KIT

Baffle - 60" - Weld On Parts To Replace Lighter Gage Baffles

1шт.

38

AUB162908

KIT

Baffle - 72" - Weld On Parts To Replace Lighter Gage Baffles

1шт.
