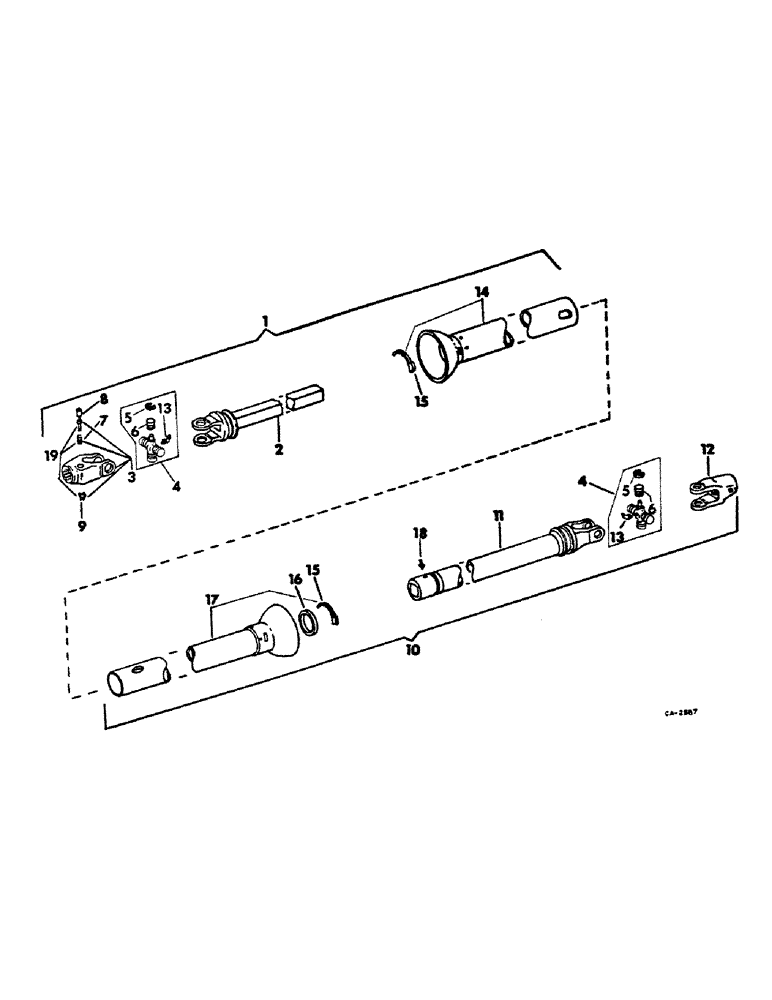

Запчасти Case IH 71 (T-7) - UNIVERSAL JOINT DRIVE, HEAVY DUTY

1

546269R91

JOINT ASSY, tractor end, chain belt

1шт.

2

546728R1

YOKE & SHAFT

1шт.

3

668335R11

FORK

YOKE ASSY, quick detachable

1шт.

4

667496R91

SPIDER ASSY.

CROSS ASSY, center

1шт.

5

667498R1

RING

snap

4шт.

6

BEARING, cup, not serviced separately, order Ref. no. 4

4шт.

7

455347R1

VALVE SPRING

SPRING

1шт.

8

PIN, not serviced separately, order Ref. no. 19

1шт.

9

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER

1шт.

10

546270R91

JOINT ASSY, implement end, chain belt

1шт.

11

546732R1

YOKE TUBE SLEEVE

1шт.

12

546734R1

YOKE, fitting

1шт.

13

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf angle lub

1шт.

14

546969R1

SHIELD, outer

1шт.

15

668336R1

NYLON BEARING,0.317"

nylon

2шт.

16

668341R1

BEARING

1шт.

17

546733R1

SHIELD, inner

1шт.

18

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF-2 str lub

1шт.

19

455346R21

PIN

ASSY

1шт.
