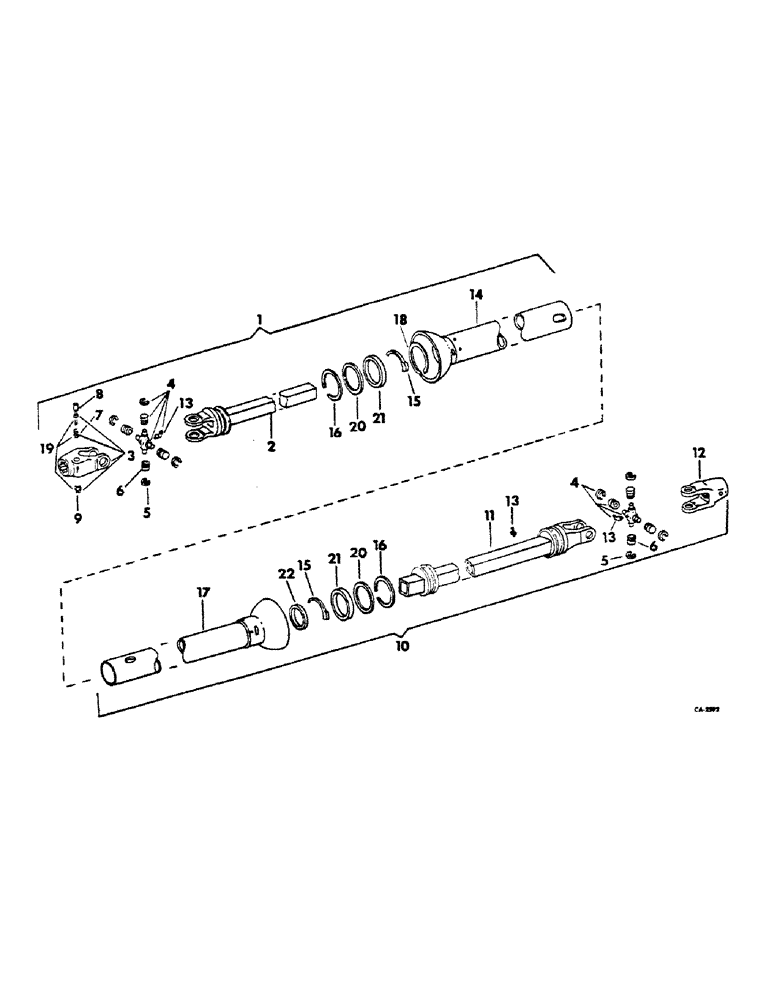

Запчасти Case IH 71 (T-6) - UNIVERSAL JOINT DRIVE, STANDARD

1

484859R92

JOINT ASSY, tractor end, chain belt or Rockwell standard

1шт.

2

484903R1

YOKE W/SHAFT

1шт.

3

459463R91

YOKE

ASSY, quick detachable

1шт.

4

480486R91

CROSS

ASSY, center, chain belt

1шт.

4

659262R91

U-JOINT SPIDER

CROSS ASSY, center, Rockwell standard

1шт.

5

606177R1

SNAP RING

RING, snap, chain belt

4шт.

5

661657R1

RING

snap, Rockwell standard

4шт.

6

BEARING, cup, not serviced separately, order Ref. no. 4

4шт.

7

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

8

PIN, locking, not serviced separately, order Ref. no. 19

1шт.

9

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

locking pin X

1шт.

10

484860R93

JOINT

ASSY, implement end, chain belt or Rockwell standard

1шт.

11

484905R3

YOKE

W/TUBE

1шт.

12

484901R1

YOKE

1шт.

13

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1-8/27 65 deg ptf lub

3шт.

14

484904R2

SHIELD, outer

1шт.

15

668336R1

NYLON BEARING,0.317"

nylon, chain belt

4шт.

16

613436R1

CLAMP

RING, retainer, Rockwell standard

1шт.

17

484906R2

SHIELD, inner

1шт.

18

668337R1

RING

retainer, chain belt

1шт.

19

455346R21

PIN

ASSY, locking

1шт.

20

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust, Rockwell standard

2шт.

21

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon, Rockwell standard

2шт.

22

613439R1

BRACKET

BEARING, nylon

1шт.

613436R1

CLAMP

RING, retaining, Rockwell standard

1шт.

668337R1

RING

retaining, chain belt

1шт.
