Запчасти Case IH 71 (T-5) - ROTOR W/KNIVES AND CONNECTIONS

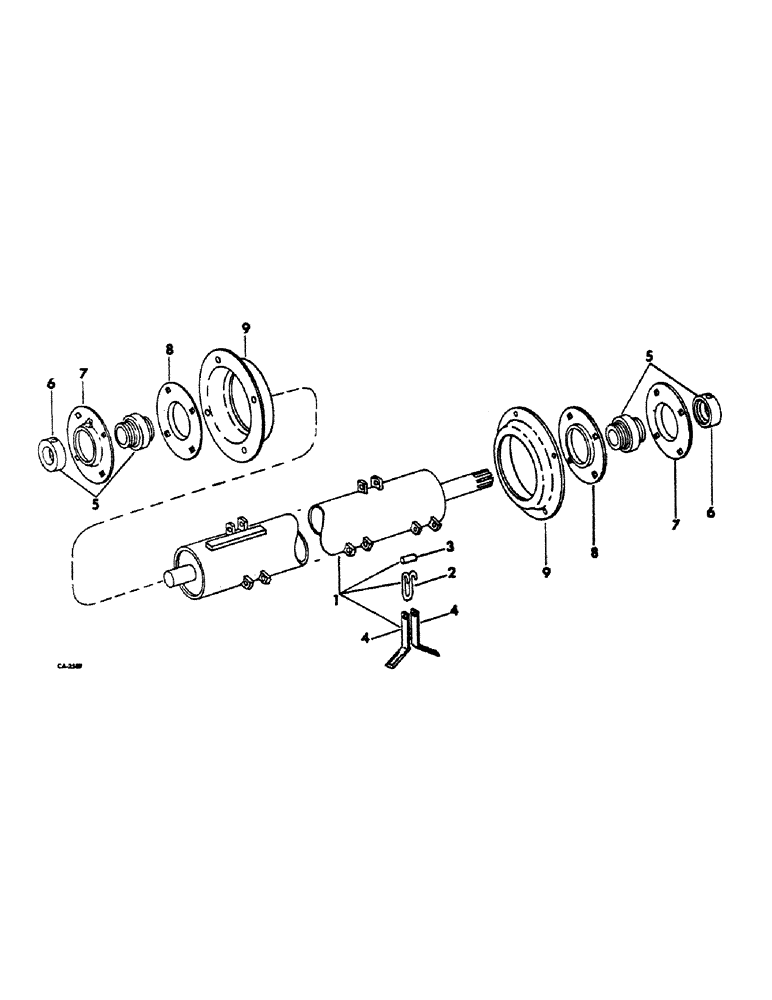

Схема запчастей Case IH 71 - (T-5) - ROTOR W/KNIVES AND CONNECTIONS

Артикул

Название

Примечание

Количество

1

546307R91

TUBE W/KNIVES, rotor

1шт.

2

546260R1

CLEVIS

pivot link

45шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 hex-hd cap

45шт.

472144R1

NUT

3/8-16 hex. two-way lock C-Z

45шт.

3

546261R1

BUSHING

clevis

45шт.

4

493765R1

HALF BLADE

KNIFE, rotor

90шт.

5

478038R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

ASSY, rotor ball

2шт.

6

455112R11

COLLAR

W/SET SCREW, ball brg

2шт.

7

488454R1

FLANGED BEARING

W/FITTING, rotor brg

2шт.

8

488455R1

FLANGE

rotor brg

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. ser. flange lock

8шт.

9

546262R1

SHIELD, brg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z ser flange lock

8шт.

Выбрано товаров: 14
