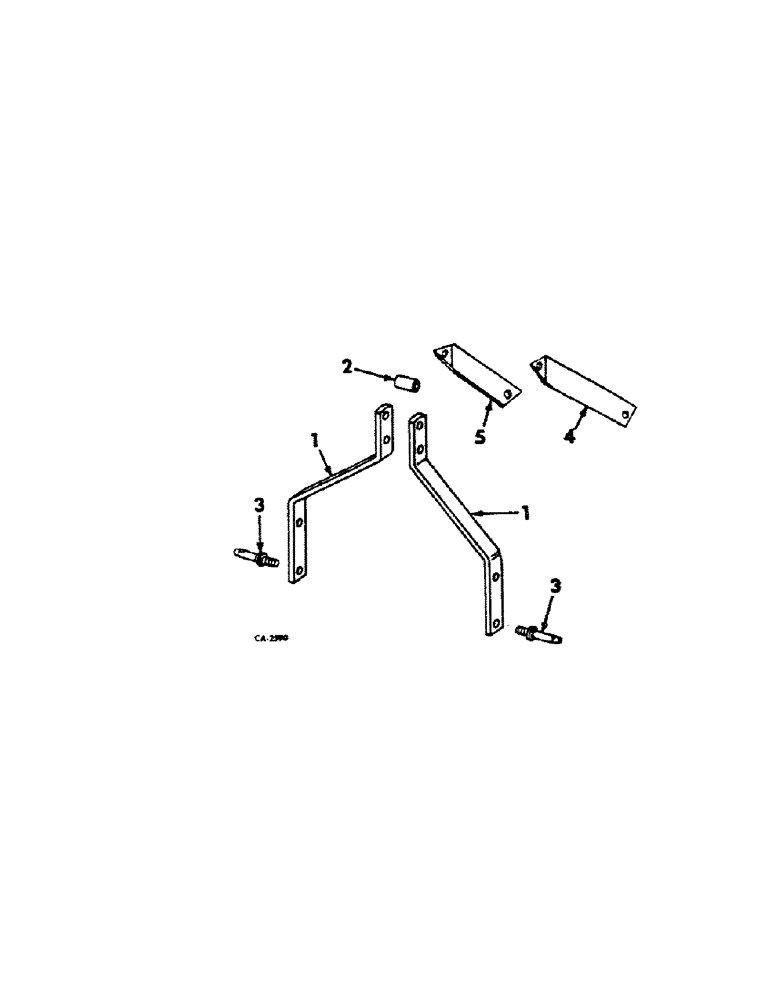

Запчасти Case IH 71 (T-4) - HITCH

1

484849R1

BRACE, upper link

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap

1шт.

271837

HINGE

SCREW, 7/8 x 2 C-Z hex-hd cap

2шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex. two-way lock

1шт.

546248R1

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 C-Z hex. two-way lock

2шт.

2

314015R1

SPACER, 1-1/4 x 1-5/16 strong pipe

1шт.

3

525921R1

STUD

PIN, hitch

2шт.

546248R1

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 C-Z hex. two-way lock

2шт.

4

546249R1

BRACE, upper hitch LH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1/2 C-Z hex-hd cap

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 two-way lock C-Z

1шт.

5

546250R1

BRACE, upper hitch RH

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1/2 C-Z hex-hd cap

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 two-way lock C-Z

1шт.
