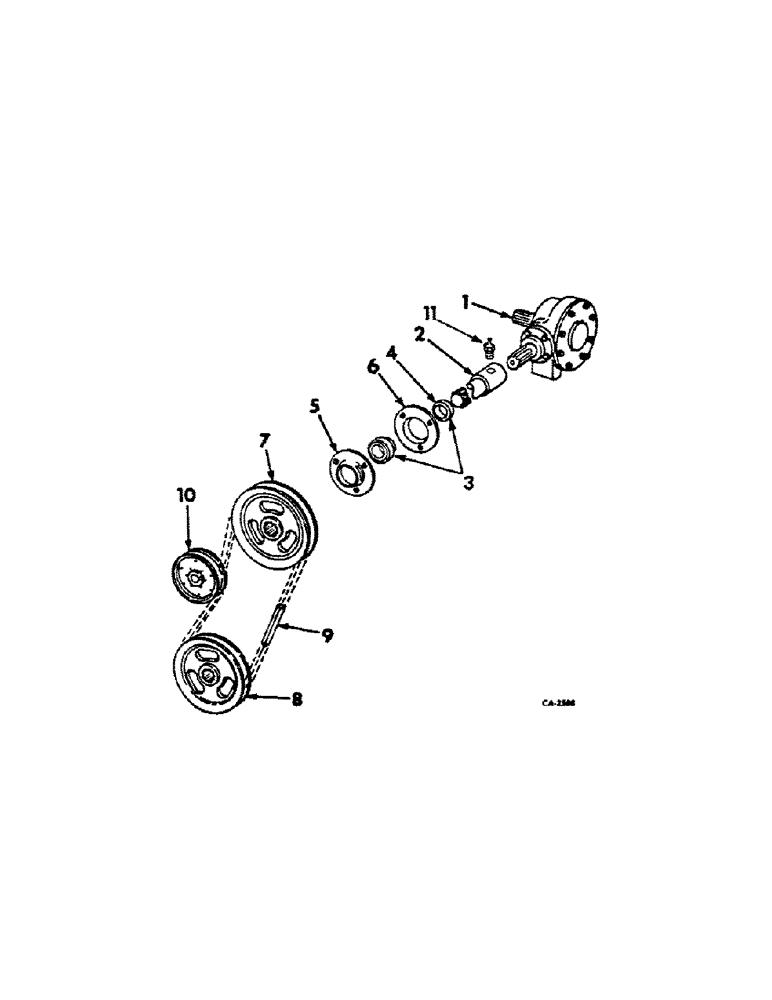

Запчасти Case IH 71 (T-4[A]) - GEAR BOX AND MOWER DRIVE

1

484832R91

BOX ASSY, drive gear, for components see list of parts under details of gear box

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

484833R2

SHAFT ASSY, drive coupling

1шт.

3

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

BEARING ASSY, coupling shaft ball

1шт.

4

455104R11

COLLAR

W/SET SCREW, brg locking

1шт.

5

473092R1

FLANGED BEARING

coupling shaft brg

1шт.

21860R1

BOLT, 5/8 x 7/8 C-Z sq-nk crg

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. ser flange lock

3шт.

6

473091R91

FLANGE

W/FITTING, coupling shaft brg

1шт.

7

484838R2

PULLEY, drive belt

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. two-way lock

1шт.

8

484839R2

PULLEY, driven belt

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 znd hex-hd cap

1шт.

27927DA

WASHER

17/32 x 7/8 x 8 ga C-Z

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. two-way lock

1шт.

9

486543R2

BELT

Drive

1шт.

10

564745R91

PULLEY

IDLER ASSY, drive belt

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

1шт.
