Запчасти Case IH 71 (T-2) - ROTOR HOUSING AND RELATED PARTS

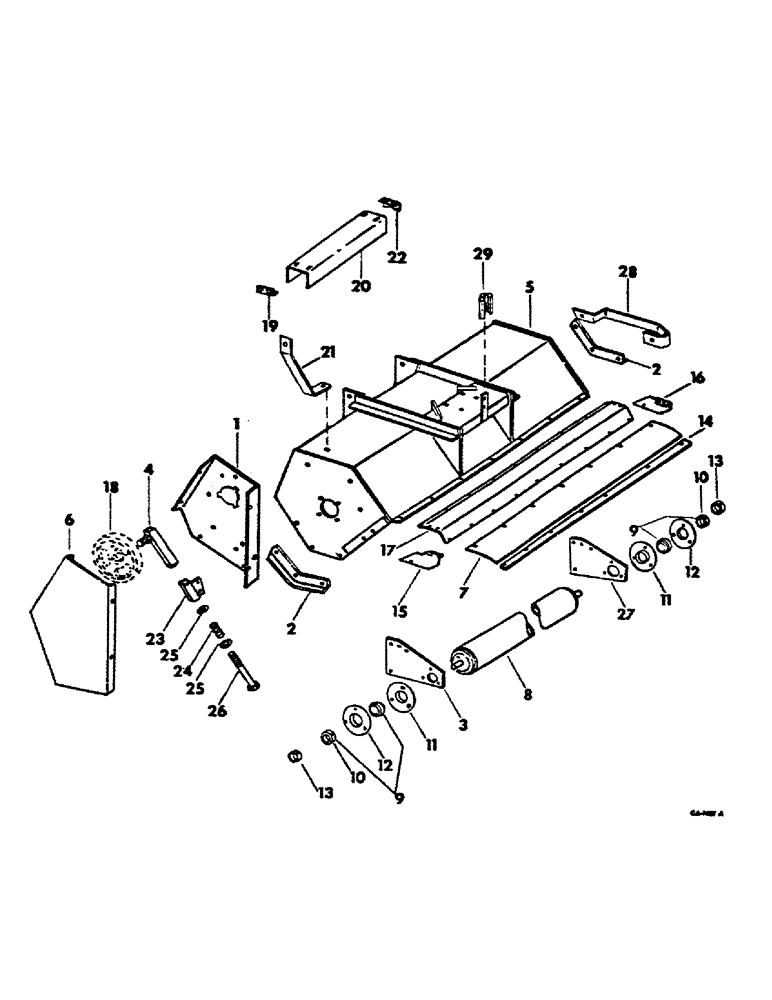

Схема запчастей Case IH 71 - (T-2) - ROTOR HOUSING AND RELATED PARTS

Артикул

Название

Примечание

Количество

1

484815R4

PLATE, drive support

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. ser. flange

2шт.

2

484816R1

SHOE

skid

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. ser. flange

4шт.

3

546227R1

BRACKET ASSY, roller LH

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 type 5 C-Z sq-nk crg

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. ser. flange

2шт.

4

493772R1

TUBE ASSY, slide

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

3шт.

9413949

NUT,5/8"-11, GA

5/8-18 znp hex. lock

1шт.

5

547253R91

HOUSING W/PRODUCT GRAPHIC, 202707C2 rotor

1шт.

6

546218R1

SHEET, belt drive cover

1шт.

323884C1

SCREW, 1/4-20 x 1/2 C-Z hex-hd flange

4шт.

546219R1

BOLT, 3/8-16 x 5/8 ser. flange

2шт.

7

SHIELD, rubber safety, discontinued for service

1шт.

8

546263R1

ROLLER ASSY, gauge

1шт.

9

546267R91

BEARING ASSY

ASSY, adj roller ball

2шт.

10

557995R11

COLLAR

W/SET SCREW, locking brg

2шт.

11

470746R1

FLANGE

adj roller ball

2шт.

12

470745R91

FLANGED BEARING

FLANGE W/FITTING, adj roller brg

2шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8 znd hex-hd

6шт.

200891C1

LOCK NUT

3/8-16 C-Z hex. flange top lock

6шт.

13

546268R1

COLLAR, retaining

2шт.

22977R1

PIN,3/8" x 1 3/4", Coiled

2шт.

22050R1

WASHER

1-9/32 x 1-3/4 x 16 ga

2шт.

14

487290R1

BAR, shield backing

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd cap

9шт.

475852R1

LOCK NUT

NUT, 5/16-18 hex. ser. flange lock

9шт.

15

488524R1

SUPPORT

shield brace LH

1шт.

19574R1

BOLT, 3/8-16 x 5/8 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

17442R1

BOLT, 1/2 x 1-1/8 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. ser. flange

1шт.

16

488525R1

SUPPORT, shield brace RH

1шт.

19574R1

BOLT, 3/8-16 x 5/8 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

17442R1

BOLT, 1/2 x 1-1/8 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. ser. flange

1шт.

17

488522R1

SUPPORT, rubber shield

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd cap

9шт.

491739R1

NUT

5/16-18 cdp two-way flange lock

9шт.

18

PULLEY, drive belt idler, refer to gear box and mower drive unit

1шт.

19

546230R1

SUPPORT ASSY, shield

1шт.

491739R1

NUT

5/16-18 two-way flange lock

2шт.

20

546234R1

SHIELD, cross drive

1шт.

21

488765R1

SUPPORT, drive plate

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. C-Z

2шт.

22

546232R1

BRACKET ASSY, shield

1шт.

491739R1

NUT

5/16-18 two-way flange lock

2шт.

23

542440R1

TUBE ASSY, support

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. ser. flange lock

2шт.

24

610703C1

VALVE SPRING

SPRING

1шт.

25

592602R1

WASHER, cup

2шт.

26

493770R1

SCREW, 3/8-16 x 9-1/2 znp hex-hd cap

1шт.

27

546228R1

BRACKET ASSY, roller RH

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 C-Z sq-nk crg

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex.

2шт.

28

484854R2

BUMPER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

29

398976R1

BRACKET

SOCKET, light bracket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 znd sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

Выбрано товаров: 71
