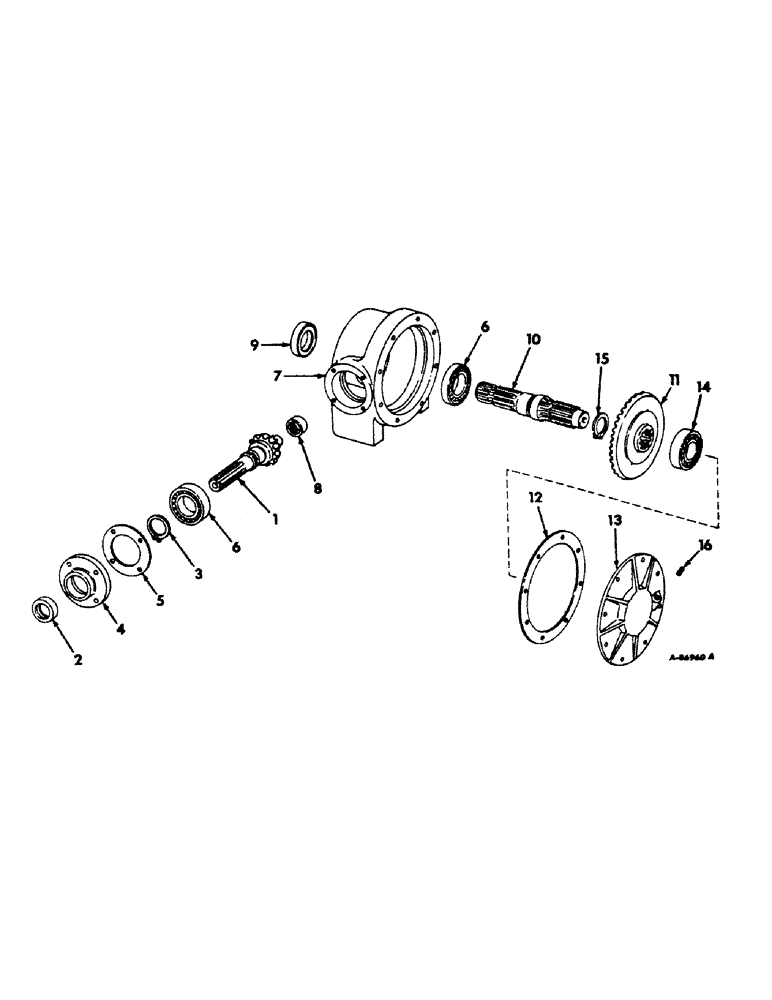

Запчасти Case IH 71 (T-8) - GEAR BOX

484832R91

BOX ASSY, drive gear

1шт.

1

485658R1

PINION, output, 13T

1шт.

2

20108D

SEAL

oil

1шт.

3

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

4

461641R1

CAP, bearing retainer

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

461638R1

GASKET

1шт.

6

20308D

BEARING, BALL,1.378" ID x 0.6693"

BEARING ASSY, ball

2шт.

7

485655R1

HOUSING GEAR

1шт.

8

485757R91

BEARING

output pinion roller

1шт.

9

478522R91

SEAL, oil

1шт.

10

485656R1

SHAFT, input

1шт.

11

485657R1

GEAR, input, 38T

1шт.

12

485759R1

SHIM .007

1шт.

12

485760R1

SHIM .015

1шт.

13

485654R1

CAP, retaining

1шт.

NLS

NO LONGER SERVICED

8шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

14

27866D

BEARING

ball

1шт.

15

327370R1

RING

retaining

1шт.

16

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/4 auto-sq-hd pipe

1шт.

58678C1

BRACKET, safety shield

2шт.

117040C91

SHIELD W/PRODUCT GRAPHIC, 64553C2, power drive safety

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
