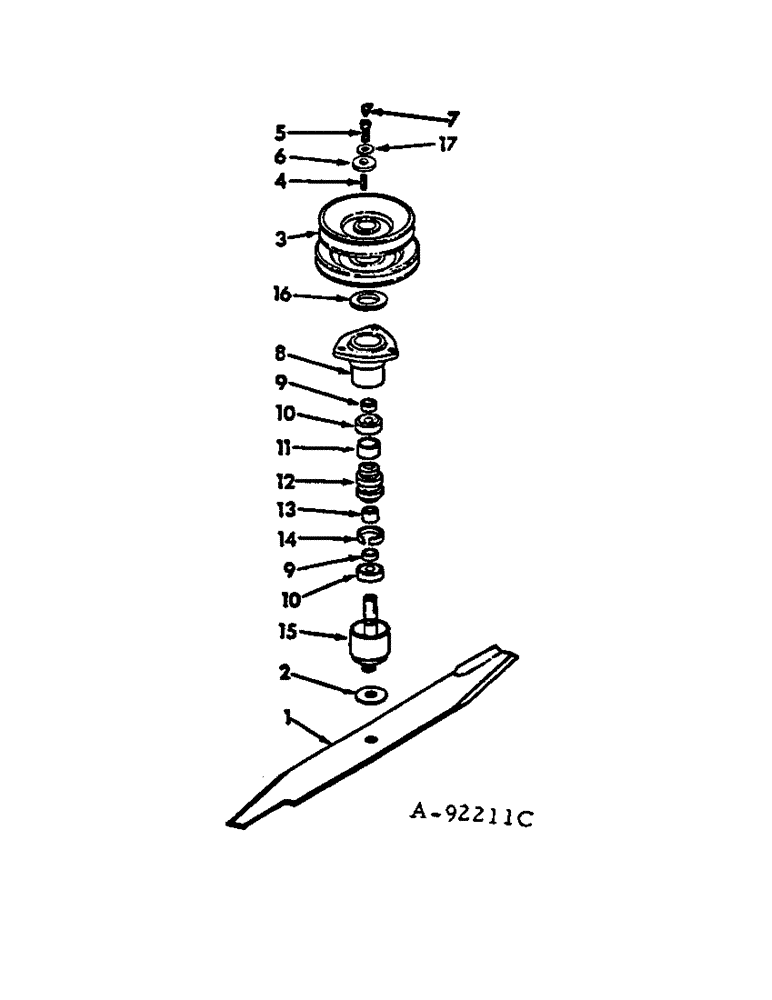

Запчасти Case IH 3260 (E-35) - 3260 ROTARY MOWER, SPINDLES AND BLADES

1

477597R3

HALF BLADE

BLADE, center

1шт.

1

490473R1

KNIFE ASSY

BLADE, center, hard surface

1шт.

1

487761R1

KNIFE ASSY

BLADER, outer

2шт.

1

490476R1

BLADE

outer, hard surface

2шт.

2

575814R1

WASHER

25/32 x 2 x 11 ga

3шт.

3

543120R1

PULLEY

center

1шт.

3

491887R1

PULLEY

outer LH

1шт.

3

491888R1

PULLEY

outer RH

1шт.

4

2390N

KEY,1/4" Sq x 1 3/4", Par

1/4 x 1-3/4 sq-parallel, center

1шт.

4

452779R1

KEY,1/4" Sq x 3/4", Par

1/4 x 3/4 sq-parallel, outer

2шт.

5

473435R1

BOLT,3/8" - 24 x 1", Grade 8

end

2шт.

6

490196R1

WASHER

outer spindle

2шт.

541326R1

WASHER

25/32 x 1-1/2 x 16 ga, for center spindle

2шт.

7

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 5/16 str drive type lub, for outer spindle

2шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, for center spindle 1/8"-27 x .66 lg

1шт.

8

541494R2

HOUSING

spindle

3шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd no. 3 plow

6шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8-16 x 1-1/4 znd no. 3 plow, used to mount center spindle

3шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

9

473431R2

SPACER

pulley

6шт.

10

473428R91

OIL SEAL

spindle oil

6шт.

11

481097R1

BUSHING

bearing OD separator

3шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, spindle cone

6шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

6шт.

12

651814R1

BEARING CUP

BEARING, spindle cup

6шт.

13

543196R1

SPACER

spindle bearing

3шт.

14

473429R1

RING

SPACER, spindle outer bearing

3шт.

15

543119R1

SPINDLE

ASSY, blade drive disc, center

1шт.

15

481093R92

SPINDLE

ASSY, blade drive disc, outer

2шт.

543575R1

PIN, 1/4 x 3 center pulley torque

1шт.

462249R1

NUT

3/4-16 torque type lock, for center spindle

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex. jam

3шт.

575814R1

WASHER

25/32 x 2 x 11 ga, blade drive disc spacer

3шт.

16

541326R1

WASHER

25/32 x 1-1/2 x 16 ga

3шт.

17

(Not used this application)

1шт.

544110R91

PACKAGE

spindle repair, consists of

3шт.

481097R1

BUSHING

1шт.

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE

2шт.

651814R1

BEARING CUP

CUP

2шт.

473428R91

OIL SEAL

OIL SEAL

2шт.

473431R2

SPACER

2шт.

543196R1

SPACER

1шт.

541326R1

WASHER

2шт.
