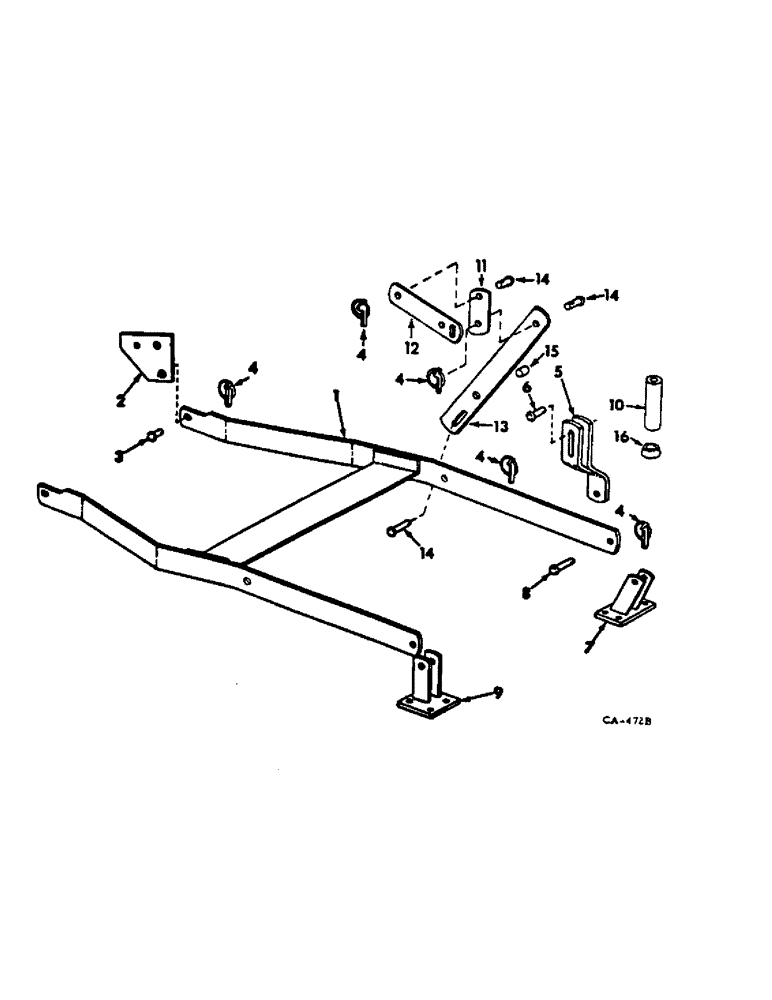

Запчасти Case IH 3260 (E-33) - 3260 ROTARY MOWER, HITCH

1

542244R1

ARM ASSY, lift

1шт.

2

491865R1

SUPPORT, lift arm

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

540179R1

PIN

lift arm pivot

2шт.

4

479696R91

AXLE PIN

PIN ASSY, klik

10шт.

5

491867R1

LINK

ASSY, lift

2шт.

6

491874R1

PIN

support hitch bracket

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

4шт.

7

491871R1

BRACKET ASSY, hitch LH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z, use for leveling

8шт.

8

491874R1

PIN

support hitch bracket

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

9

491875R1

BRACKET ASSY, hitch RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

492101R2

SPACER

mower limiter, to limit height of mower

2шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

2шт.

11

542251R1

LINK, stabilizer bar attaching

2шт.

12

542250R1

ROCKSHAFT

ARM, extension rockshaft

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

13

542253R1

BAR ASSY, stabilizer RH

1шт.

13

542252R1

BAR ASSY, stabilizer LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

14

540179R1

PIN

lift arm pivot

4шт.

21829R1

COTTER PIN,3/16" x 1 1/8"

3/16" x 1 1/8"

2шт.

15

542257R1

BUSHING

SPACER, stabilizer bar

2шт.

16

487823R1

BUMPER

seat

2шт.

18777R1

BOLT

5/16 x 6 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.
