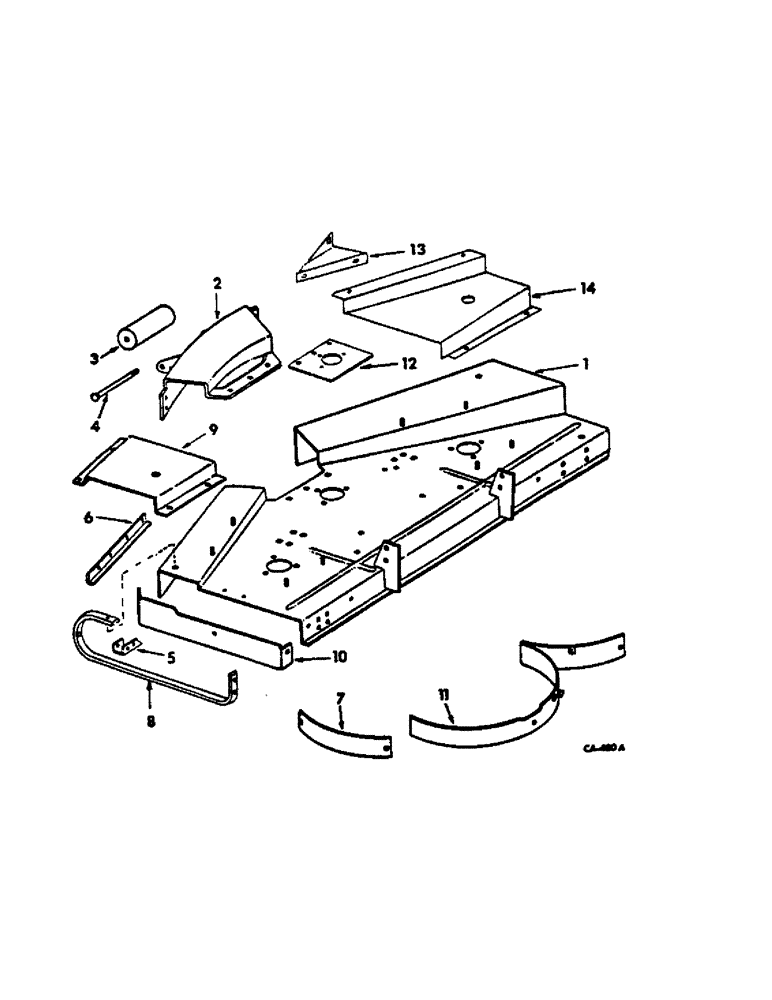

Запчасти Case IH 3260 (E-32) - 3260 ROTARY MOWER, MAIN FRAME

1

541819R3

HOUSING ASSY, mower

1шт.

171103

SCREW,Self-Tap, Hex, 5/16" - 18 x 3/4"

5/16-18 x 3/4 hex hd tap

8шт.

2

541821R1

HOUSING, center

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

2шт.

22476R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT, 3/8 x 1-1/8 znd sq-nk crg

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

3

491844R1

ROLLER

1шт.

4

491845R1

BOLT,1/2" - 13 x 9.6"

roller

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 CDP nylon insert

1шт.

5

541806R1

BRACE, LH runner

1шт.

22476R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT, 3/8-16 x 1-1/8 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

6

541808R1

BAFFLE, front LH

1шт.

19427R1

BOLT

3/8-16 x 7/8 CDP sq-nk crg

2шт.

22476R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT, 3/8 x 1-1/8 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

541809R1

BAFFLE, front RH

1шт.

19427R1

BOLT

3/8-16 x 7/8 CDP sq-nk crg

1шт.

22476R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT, 3/8-16 x 1-1/8 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

541816R1

SHROUD, LH front

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16-18 x 5/8 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

541811R1

SUPPORT

RUNNER, LH

1шт.

8

541812R1

SUPPORT

RUNNER, RH

1шт.

9

491854R1

SHIELD, belt LH

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

541813R1

SIDE, housing LH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120122

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

SCREW, 3/8-16 x 1 znd hex-hd cap

2шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

541817R1

SHROUD ASSY, LH, machines built, Serial Range: 1969-1971

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16-18 x 5/8 znd crg

2шт.

120376

NUT,5/16"-18, G5

3шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

541818R1

SHROUD ASSY, RH, machines built, Serial Range: 1969-1971

1шт.

19428R1

BOLT, 5/16-18 x 5/8 CDP sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

543599R1

PLATE, support

1шт.

13

541807R1

BRACE, RH runner

1шт.

22476R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT, 3/8 x 1-1/8 znd sq-nk crg

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

4шт.

14

491855R1

SHIELD, belt RH

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
