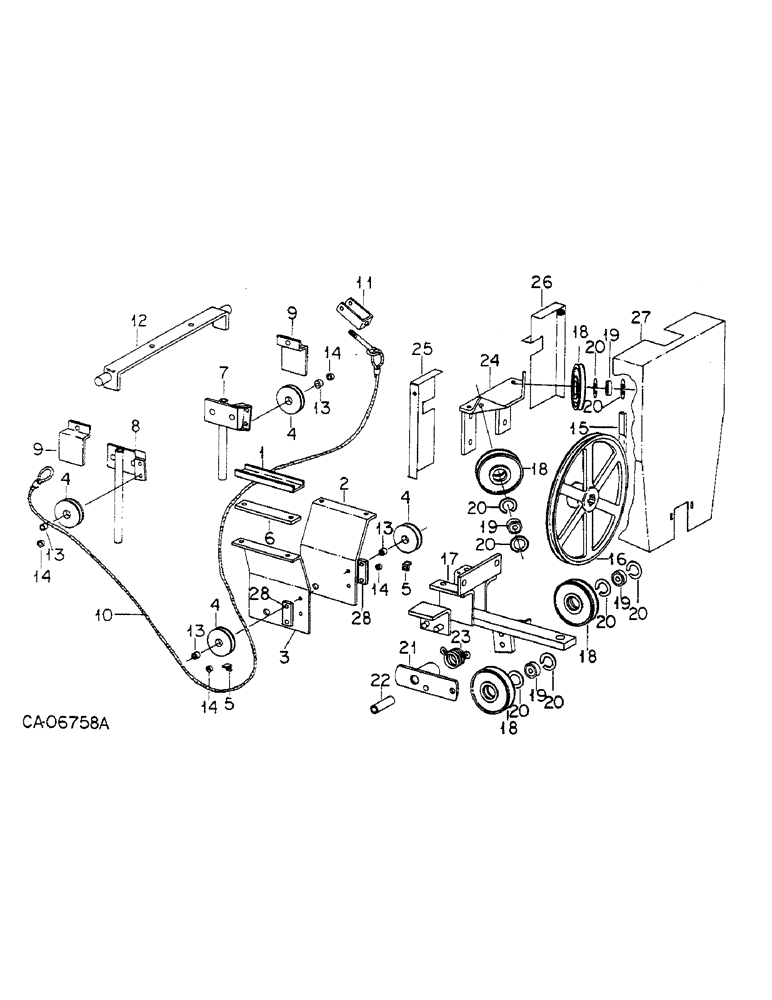

Запчасти Case IH 3160A (E-28) - 3160 SERIES A ROTARY MOWER, HITCH FOR 284 TRACTOR, MACHINES BUILT 1978 & SINCE
№
Артикул
Название
Примечание
Количество
1
132344C1
BRACKET
upper axle
2шт.
19823R1
BOLT,Hex, 5/8" - 11 x 7", Gr 5
5/8 x 7 type 5
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
2
140089C1
SUPPORT
lower axle RH
1шт.
3
140088C1
SUPPORT
lower axle LH
1шт.
4
140087C1
PULLEY
cable
4шт.
24841R1
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8
Hex, 3/8"-16 x 1 1/2 inch, G8
2шт.
24842R1
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8
2шт.
25500R1
BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 8
3/8 x 3-1/4 PHC type 8
1шт.
477589R1
WASHER
.406 x 1.500 x .105
4шт.
Q311
WASHER
.906 x 1.750 x .067 pln
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
5
132348C1
RETAINER
ANGLE, cable
2шт.
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
3/8 x 2-1/2 type 5
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
6
76540C1
BAR
spacer
2шт.
7
140096C1
STOP
mower RH
1шт.
30221R1
BOLT,Hex, M14 x 2 x 25mm, Cl 8.8, Full Thd
M14 x 25 class 8.8
2шт.
933967R1
LOCK WASHER,M14
WASHER, 14mm lock
2шт.
8
140094C1
STOP
mower LH
1шт.
30221R1
BOLT,Hex, M14 x 2 x 25mm, Cl 8.8, Full Thd
M14 x 25 class 8.8
2шт.
933967R1
LOCK WASHER,M14
WASHER, 14mm lock
2шт.
9
132352C1
SHIELD
pulley
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
10
132383C1
CABLE
2шт.
120376
NUT,5/16"-18, G5
4шт.
11
132360C1
HANGER
YOKE, adjusting
2шт.
12
132361C1
SHAFT
ROCKSHAFT ASSY
1шт.
627-14040
BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd
M14 x 35 class 8.8
2шт.
933967R1
LOCK WASHER,M14
WASHER, 14mm lock
2шт.
13
140295C1
BUSHING,0.627" ID x 0.878" OD x 0.63"
4шт.
14
135595C1
SPACER
4шт.
15
135594C1
BELT,199.00" L
Drive 199.00" L
1шт.
16
135587C1
PULLEY
drive
1шт.
180113
SPRING
5/16 x 3 type 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120376
NUT,5/16"-18, G5
1шт.
17
135602C1
BAR
DRAWBAR ASSY
1шт.
30237R1
BOLT,Hex, M18 x 2.5 x 40mm, Class 8.8
M18 x 40 class 8.8
2шт.
934186R1
LOCK WASHER,M18
WASHER, 18mm znd med lock
2шт.
30378R1
BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd
M14 x 30 znd class 8.8
2шт.
933967R1
LOCK WASHER,M14
WASHER, 14mm lock
2шт.
18
140283C1
PULLEY
idler
4шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 x 2 type 5
4шт.
NLS
NO LONGER SERVICED
.531 x 1.062 x .074
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
19
107095C91
BALL BEARING,13mm ID x 40mm OD x 18mm W
4шт.
20
133213R1
SNAP RING,1.562", Int, #156
Ring, Snap, 1.562", Int, #156
8шт.
21
135590C1
ARM
ASSY, idler
1шт.
271733
BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5
5/8 x 4-1/2 type 5
1шт.
NLS
NO LONGER SERVICED
.656 x 1.312 x .074
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
22
135601C1
SPACER
1шт.
23
541549R1
SPRING
idler torsion
1шт.
24
135596C1
BRACKET
idler
1шт.
30378R1
BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd
M14 x 30 znd class 8.8
4шт.
933967R1
LOCK WASHER,M14
WASHER, 14mm lock
4шт.
25
135592C1
SHIELD
ASSY, back LH
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120376
NUT,5/16"-18, G5
1шт.
22859R1
WASHER
.344 x .750 x .164
1шт.
26
135593C1
SHIELD
ASSY, back RH
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120376
NUT,5/16"-18, G5
1шт.
22859R1
WASHER
.344 x .750 x .164
1шт.
27
140182C91
SHIELD
W/PRODUCT GRAPHIC, main
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
64553C2
PRODUCT GRAPHIC
warning
1шт.
28
223525C1
SPACER
pulley
2шт.
Выбрано товаров: 84
