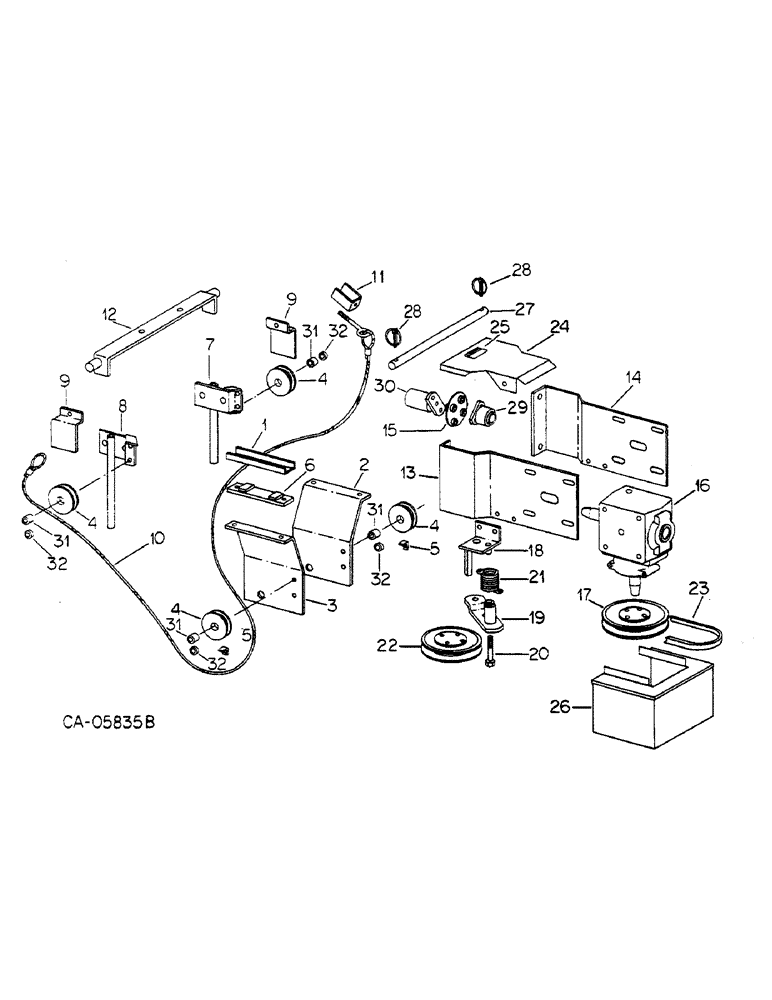

Запчасти Case IH 3160A (E-26) - 3160 SERIES A ROTARY MOWER, HITCH FOR 284 TRACTOR, MACHINES BUILT UP TO 1978

1

132344C1

BRACKET

upper axle

2шт.

2

132346C1

BRACKET, RH lower axle

1шт.

3

132345C1

BRACKET, LH lower axle

1шт.

4

140087C1

PULLEY

cable, replaces 132347C1 by also ordering bearing 140295C1 and spacer 135595C1

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

5

132348C1

RETAINER

cable

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

132349C1

PLATE

spacer

2шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8 x 7 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

140096C1

STOP

mower RH, replaces 132354C1 by also ordering two nuts 120377

1шт.

30236R1

BOLT,M14 x 40mm, Cl 8.8

M14 x 40 class 8.8

2шт.

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

2шт.

8

140094C1

STOP

mower, LH, replaces 132967C1 by also ordering two nuts 120377

1шт.

30236R1

BOLT,M14 x 40mm, Cl 8.8

M14 x 40 class 8.8

2шт.

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

2шт.

9

132352C1

SHIELD

pulley

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

132383C1

CABLE

2шт.

120376

NUT,5/16"-18, G5

4шт.

11

132360C1

HANGER

adjusting

2шт.

12

132361C1

SHAFT

ASSY

1шт.

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

M14 x 35 class 8.8

2шт.

933967R1

LOCK WASHER,M14

WASHER, 14M znd med lock

2шт.

13

132364C1

BRACKET

gear box mtd. LH

1шт.

14

132365C1

BRACKET, gear box mtd. RH

1шт.

15

132380C1

COUPLING

flex

1шт.

16

132366C1

BOX, right angle gear, for components, see list of parts under details of right angle gear box

1шт.

17

132367C1

PULLEY, drive

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120396

WASHER

.531 x 1.062 x .074

8шт.

30237R1

BOLT,Hex, M18 x 2.5 x 40mm, Class 8.8

18-2.5 x 40 znd hex

2шт.

934186R1

LOCK WASHER,M18

WASHER, 18mm znd med lock

2шт.

30236R1

BOLT,M14 x 40mm, Cl 8.8

14-2.00 x 40 znd hex-hd cap

2шт.

933967R1

LOCK WASHER,M14

WASHER, 14mm znd med lock

2шт.

18

132368C1

BRACKET ASSY, idler

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

132371C1

ARM, idler

1шт.

20

541554R1

BOLT,Shoulder, Hex, 5/8" - 11 x 4.10"

shoulder

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

21

132373C1

SPRING, idler torsion

1шт.

22

470716R1

PULLEY ASSY.

PULLEY, flat idler

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

23

132374C1

BELT

Main Drive

1шт.

24

3132381C91

GUARD ASSY, upper

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

64553C2

PRODUCT GRAPHIC

caution power drive

1шт.

26

132376C1

GUARD, lower

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

132382C2

PIN, hitch lockout

1шт.

28

486830R1

COTTER PIN

PIN, quick attachable

2шт.

29

132408C2

COUPLING

input, tapered

1шт.

30

132409C1

COUPLING

output, splined

1шт.

31

140295C1

BUSHING,0.627" ID x 0.878" OD x 0.63"

4шт.

32

135595C1

SPACER

4шт.
