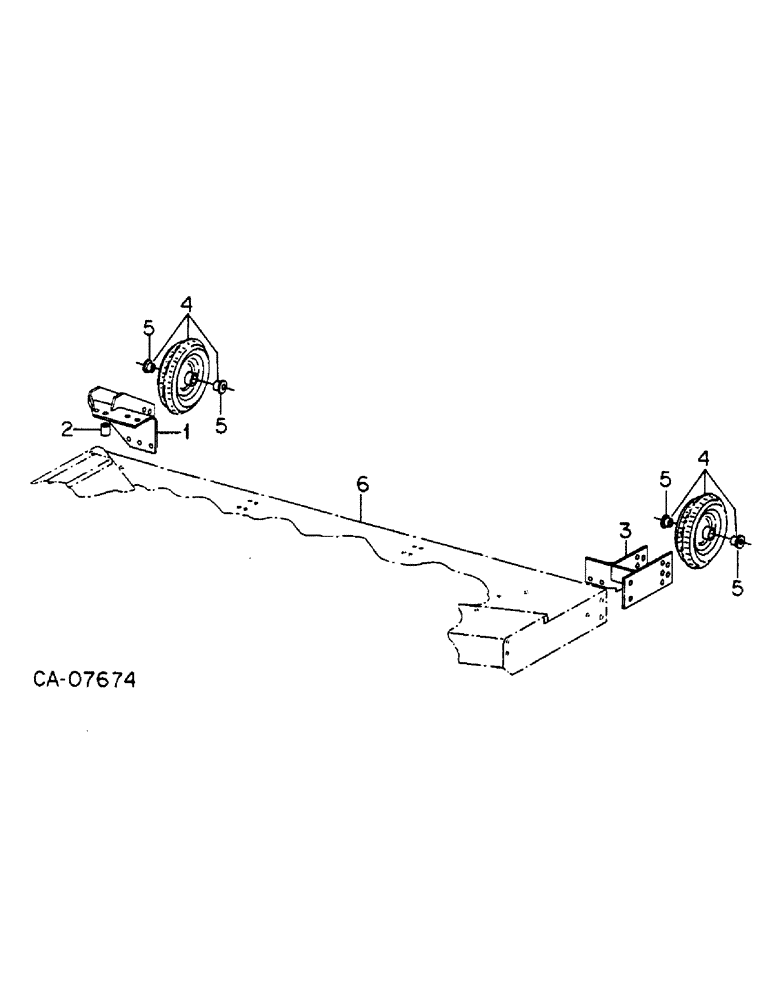

Запчасти Case IH 3160A (E-25) - 3160 SERIES A ROTARY MOWER, GAUGE WHEEL ATTACHMENT

1

144438C1

BRACKET

ASSY, RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

144434C1

SPACER

1шт.

3

223320C1

BRACKET

ASSY, LH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120396

WASHER

.531 x 1.062 x .074

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

474104R92

WHEEL

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

663393R1

SPACER

1шт.

Re: item number 5 is pictured incorrectly here. In the picture it shows bushings, no part number available, comes with it. number 4. Part 663393r1 is actually a spacer measuring 3 3/8" long, 3/4" od and .5" id. ph-cam 12-1-98

1шт.

6

HOUSING ASSY, refer to main frame

1шт.
