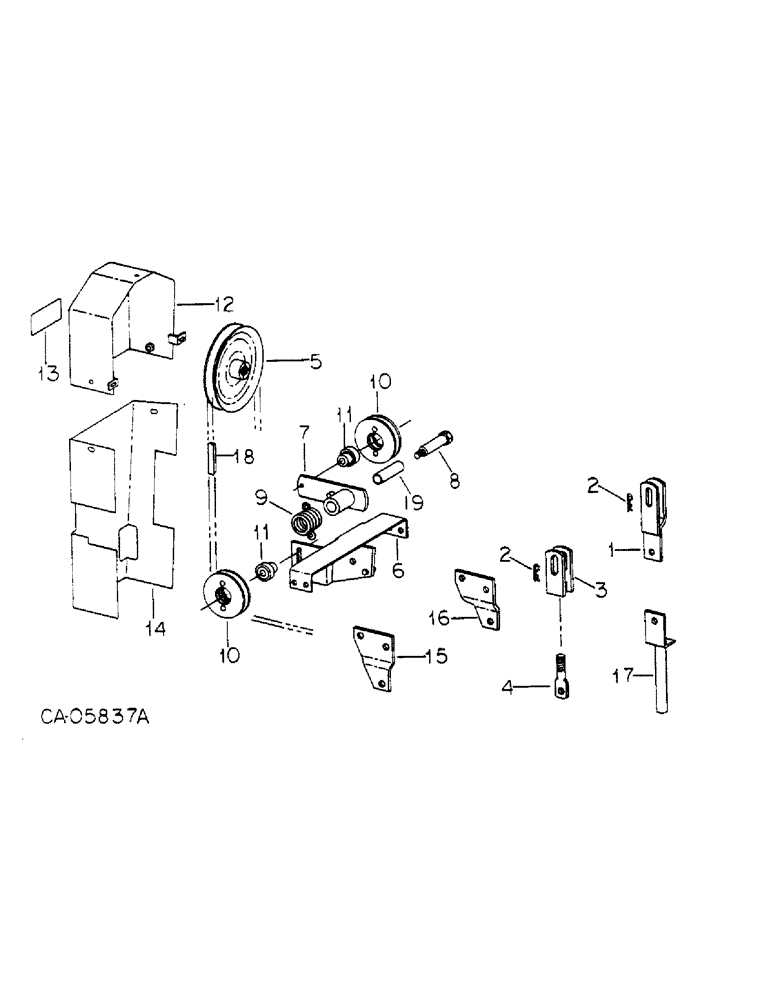

Запчасти Case IH 3160A (E-24) - 3160 SERIES A ROTARY MOWER, HITCH, 154, 185 CUB LO-BOY AND 184 TRACTORS

1

106791C1

LINK

fixed

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2. hd type 1

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

2

486830R1

COTTER PIN

PIN, quick attachable

2шт.

3

106788C1

YOKE

adjustable

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2. hd type 1

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

4

106787C1

ADJUSTMENT SCREW

adjusting

1шт.

5

491881R2

PULLEY

driver

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

6

541556R2

BRACKET

ASSY, idler support

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

7

541553R2

ARM

ASSY, idler

1шт.

8

BOLT, shoulder, on orders for shoulder bolt 541554R1, furnish bolt 271733, spacer 135601C1, and washer 131016

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

8

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

9

541549R1

SPRING

idler torsion

1шт.

10

543125R2

PULLEY

mule drive idler

2шт.

11

543126R91

BALL BEARING,19.33mm ID x 34.92mm OD x 23.14mm W

pulley ball

2шт.

273028

BEARING HOUSING

BOLT, 3/4-NF x 6-3/4 pln type 5

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12

132395C91

SHIELD

ASSY WITH PRODUCT GRAPHIC

1шт.

13

64553C2

PRODUCT GRAPHIC

caution

1шт.

14

492970R2

SHIELD

lower

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

6шт.

491997R1

SPACER,3/8" X-Strng Pipe x 5 3/4"

3/8 x 5.75 pipe

1шт.

15

106772C1

BRACKET

BRACKER, rear mtg RH

1шт.

16

106784C1

BRACKET

rear mtg LH

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

4шт.

17

107193R2

STOP, mower assy

2шт.

271715

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

131016

WASHER

.656 x 1.312 x .074

2шт.

120376

NUT,5/16"-18, G5

2шт.

18

106492C1

V-BELT,156.00" L

Main Drive 156.00" L

1шт.

19

135601C1

SPACER

1шт.
