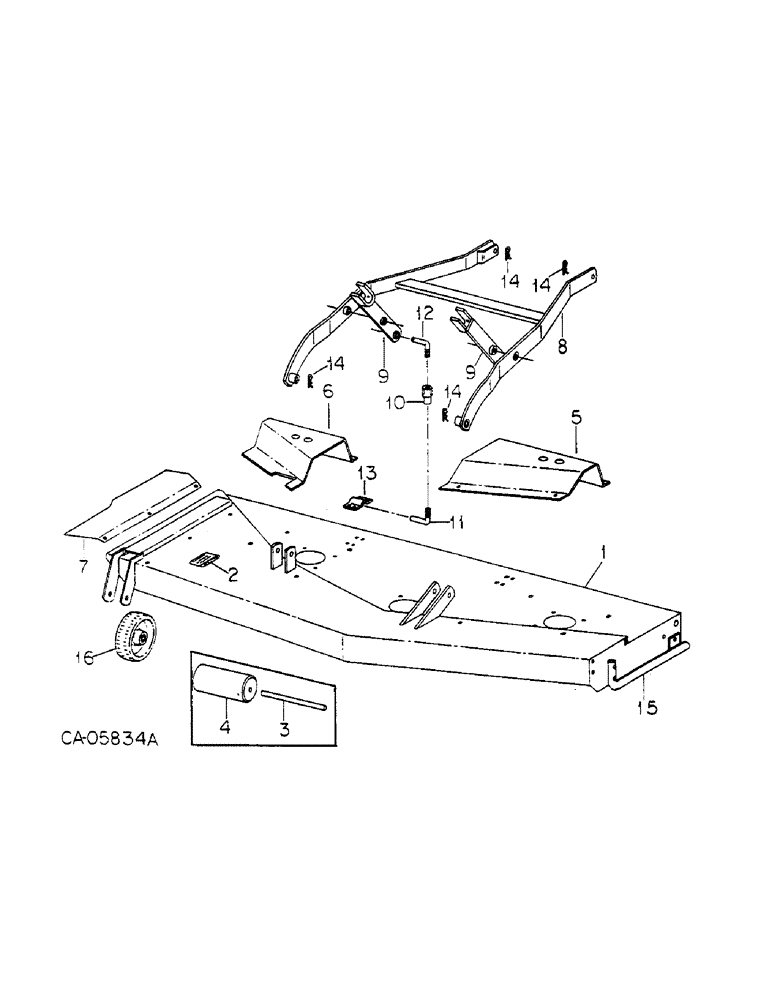

Запчасти Case IH 3160A (E-22) - 3160 SERIES A ROTARY MOWER, MAIN FRAME

1

223365C1

HOUSING

ASSY W/PRODUCT GRAPHIC, serial no. 013500 & above

1шт.

1

72886C91

HOUSING

ASSY W/PRODUCT GRAPHIC, serial no. 013499 & below

1шт.

2

57801C2

PRODUCT GRAPHIC

caution

1шт.

3

132294C1

PIN

roller, serial no. 013499 & below

3шт.

120396

WASHER

.531 x 1.062 x .074

6шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

6шт.

4

491844R2

ROLLER

center, serial no. 013499 & below

1шт.

5

106803C1

SHIELD

belt LH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

6

106804C2

SHIELD

belt RH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

7

106634C1

DEFLECTOR

60 in. grass

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

8

106800C2

FRAME

outer lift

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 hd type 1

2шт.

22896R1

HEADED PIN,5/8" x 3"

PIN, HEADED, 5/8" x 3"

2шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

4шт.

9

106798C1

FRAME

center

2шт.

22896R1

HEADED PIN,5/8" x 3"

PIN, HEADED, 5/8" x 3"

2шт.

131016

WASHER

.656 x 1.312 x .074

6шт.

10

117328C1

UNION

rear hanger

2шт.

11

117330C1

ROD

rear hanger lower

2шт.

12

117329C1

ROD

rear hanger upper

2шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

2шт.

486830R1

COTTER PIN

PIN, Q.A.

2шт.

124847

COLLAR

5/8 jam type 5

2шт.

13

72895C1

CLAMP

rear hanger

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

14

486830R1

COTTER PIN

PIN, quick attachable

4шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

15

144446C1

SUPPORT

RUNNER ASSY, serial no. 013500 & above

1шт.

192105

HOLE PLUG BUTTON,1"

PLUG, 1 x 1.56 x .296 znd button

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

16

144454C1

WHEEL

serial no. 013500 & above

1шт.

21993R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3.500 hd type 1

1шт.
