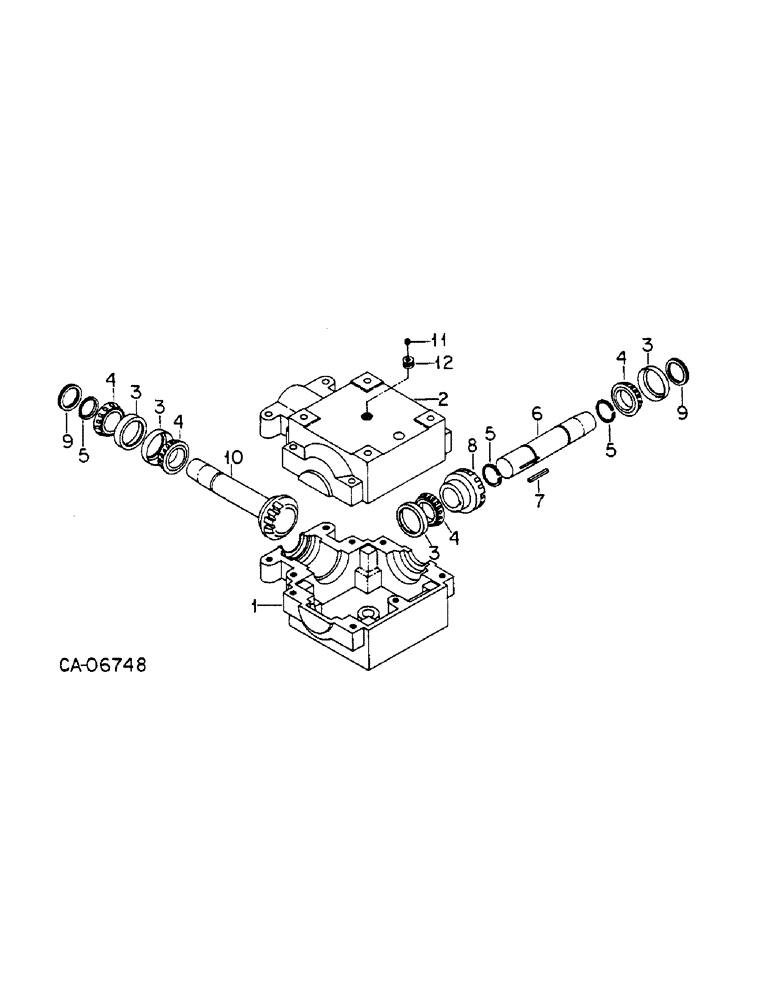

Запчасти Case IH 3160A (E-30) - 3160 SERIES A ROTARY MOWER, RIGHT ANGLE GEAR BOX / PRODUCT GRAPHICS

132366C1

BOX ASSY, right angle gear

1шт.

1

76955C1

BOX, threaded holes

1шт.

444872

PLUG

1/2 NPT soc hd

1шт.

2

76956C1

BOX

thru holes

1шт.

138247

BEARING

3/8 x 2-1/4 pln h/shd cap

9шт.

3

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

CUP, bearing

4шт.

4

59756H

CONE

bearing

4шт.

5

76957C1

RING

retainer

3шт.

6

76958C1

SHAFT

cross

1шт.

7

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x 1.20

1шт.

8

76959C1

GEAR

BEAR, #2

1шт.

9

76961C1

OIL SEAL

oil

2шт.

10

76960C1

SHAFT

pinion

1шт.

11

152127H1

BREATHER,1/8"-27, Short

PLUG, vented 1/8 PTF

1шт.

12

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

BUSHING, reducer 1/2NPT-1/2NPT

1шт.

57801C2

PRODUCT GRAPHIC

caution

1шт.

117539C1

PRODUCT GRAPHIC, model designation

1шт.

64553C2

PRODUCT GRAPHIC

S, caution power drive

1шт.

76668C1

PRODUCT GRAPHIC

caution

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

547496R92

DECAL

PACKAGE, International name product graphics

1шт.

547498R92

DECAL

PACKAGE, International model designation

1шт.
