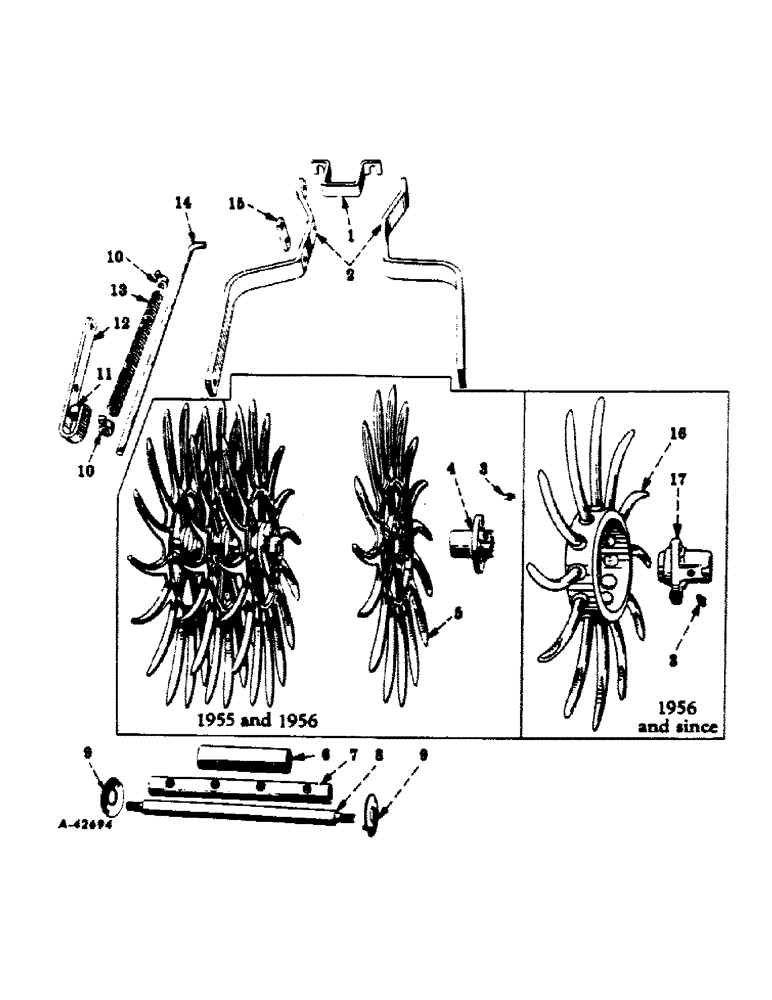

Запчасти Case IH F-144 (B-32) - ROTARY WEEDERS

1

517704R1

BRACKET, pivot

1шт.

NUT, 5/8 in.

2шт.

113062

PULLEY

SCREW, 5/8 x 2-1/2 in. dog-pt sq-hd set

2шт.

2

517702R1

RAIL, frame

1шт.

BOLT, 1/2 x 1-3/4 in. mach

1шт.

BOLT, 1/2 x 2 in. mach

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

2173W

PIN, 5/8 x 5-1/2 in. dld-std-hd

1шт.

WASHER, 1/2 in. lock

1шт.

3

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

4

517698R1

HUB, wheel

56шт.

BOLT, 5/16 x 1-1/2 in. mach

3шт.

WASHER, 5/16 in. lock

3шт.

5

8620

HYDRAULIC CYLINDER

WHEEL, weeder

56шт.

6

517708R1

SPACER, wheel, used in place of the two center wheels when the weeder is to be used as a shield

1шт.

7

517706R1

SLEEVE, bearing

1шт.

M94596

WASHER, 1-5/64 x 1-5/8 in. x 16 ga

3шт.

8

516442R1

SHAFT, wheel

1шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 25/32 x 2-1/8 in. x 12 ga

2шт.

9

516447R1

WASHER, wear

1шт.

10

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

11

837B

SWIVEL, lift arm

1шт.

12

517705R11

ARM W/SWIVEL, lift

1шт.

BOLT, 5/8 x 1-1/2 in. mach

2шт.

13

PO121

SPRING

cushion, 1-1/16 in. OD, 14 in. long, 40-1/2 coils

1шт.

14

28492B

ROD, pressure

1шт.

PIN, 3/16 x 1 in. self-opening cotter

2шт.

15

516445R1

CLIP, lift rod

1шт.

16

522294R11

WHEEL, weeder

56шт.

17

522293R16

HUB, wheel

56шт.

BOLT, 3/8 x 1-1/2 in. mach

3шт.

WASHER, 3/8 in. lock

3шт.
