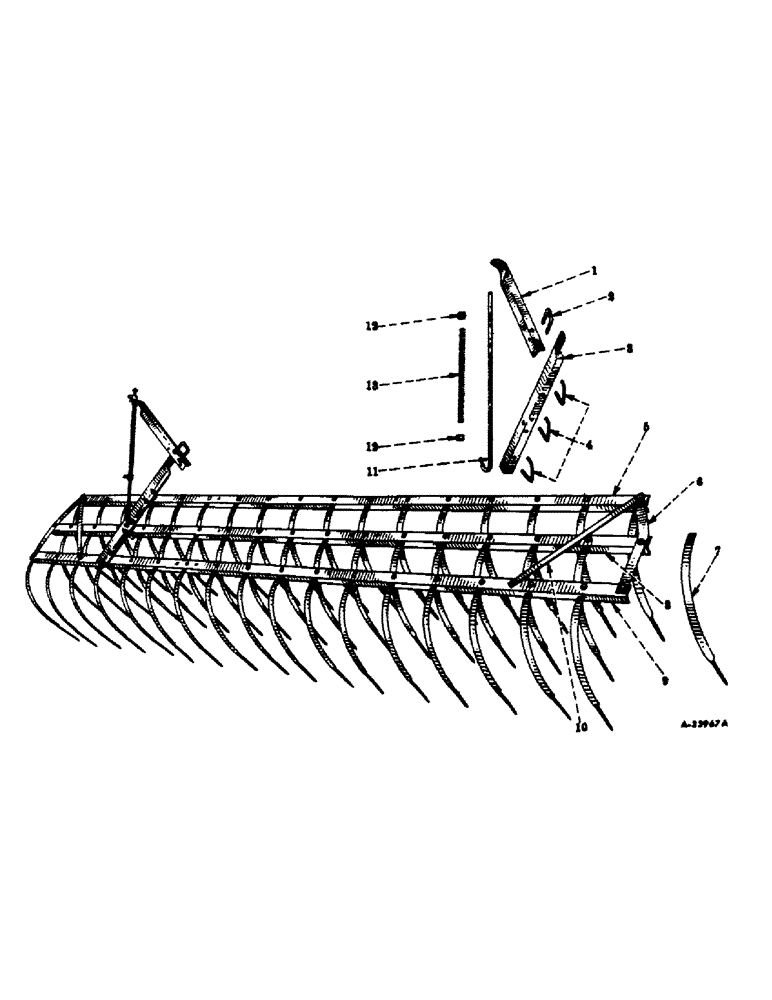

Запчасти Case IH F-144 (B-31) - WEEDER MULCHER, ONE SECTION

1

519455R1

ANGLE, hitch

1шт.

2

27651B

BOLT,1/2" - 13 x 2.56"

U-BOLT, hitch support

1шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

3

519454R1

ANGLE, hitch support

1шт.

BOLT, 7/16 x 1-1/4 in. crg

1шт.

WASHER, 7/16 in. lock

1шт.

WASHER, 15/32 x 1-1/4 in. x 16 ga

1шт.

4

PO27695AX

U-BOLT W/NUT, hitch angle

1шт.

NUT, 3/8 in.

2шт.

WASHER, 3/8 in. lock

2шт.

5

PO27685

ANGLE, front, for 7-1/2 ft frame

1шт.

5

PO28676

ANGLE, front, for 10 ft frame

1шт.

6

PO27684

BRACE, frame angle

1шт.

BOLT, 3/8 x 7/8 in. crg

1шт.

WASHER, 3/8 in. lock

1шт.

7

16448B

SPRING

TOOTH, weeder

1шт.

BOLT, 3/8 x 7/8 in. crg

1шт.

BOLT, 3/8 x 1 in. crg

1шт.

WASHER, 3/8 in. lock

1шт.

8

PO27686

ANGLE, center, for 7-1/2 ft frame

1шт.

8

PO28677

ANGLE, center, for 10 ft frame

1шт.

9

PO27687

ANGLE, rear, for 7-1/2 ft frame

1шт.

9

PO28678

ANGLE, rear, for 10 ft frame

1шт.

10

PO28675

BRACE, diagonal

1шт.

11

29276B

ROD

pressure

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

12

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

13

PO172

SPRING

pressure rod, 5/16 in. OD, 12-5/8 in. long, 42 coils

1шт.
