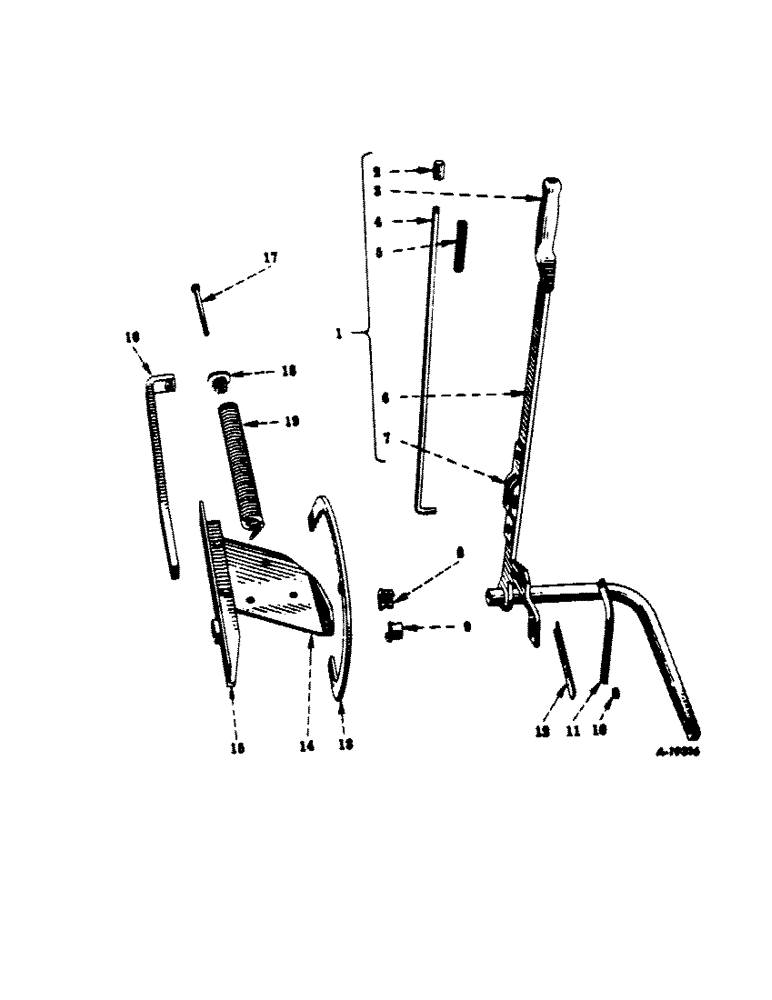

Запчасти Case IH F-144 (B-30) - MASTER CONTROL LEVER AND ROCKSHAFT

1

511970R93

LEVER AND ROCKSHAFT ASSEMBLY

1шт.

2

511964R1

BUTTON, lever push

1шт.

142485

GROOVED PIN,1/8" x 5/8", Type A

Pin, Grooved, 1/8" x 5/8", Type A

1шт.

3

511962R1

HANDLE, lever

1шт.

RIVET, 5/16 x 7/8 in. csk-hd

2шт.

WASHER, 7/16 x 11/16 in. x 18 ga

1шт.

4

511963R1

ROD, lever latching

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

WASHER, 7/16 x 1 in. x 14 ga

1шт.

5

2067A

SPRING

latch rod, 41/64 in. OD, 3-3/8 in. long, 20 coils

1шт.

6

511969R91

ROCKSHAFT AND LEVER, order rockshaft and lever assembly 514298R92, guide 514297R1 and two rivets 5/8 x 7/8 in. thd.

47шт.

6

514298R92

ROCKSHAFT AND LEVER

48шт.

PIN, 1/4 x 1-3/4 in. self-opening cotter

1шт.

WASHER, 1-5/16 x 2 in. x 18 ga

1шт.

7

514297R1

GUIDE, latching rod

1шт.

RIVET, 5/16 x 7/8 in. truss hd

2шт.

8

1691B

BEARING

rockshaft half upper

1шт.

9

1692B

BEARING

rockshaft half lower

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

10

515753R1

BUSHING. spring link

1шт.

11

511976R1

CLAMP

LINK, spring

1шт.

BOLT, 1/2 x 1-1/2 in. mach

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

12

511975R1

ADJUSTER, spring link

1шт.

13

511973R2

QUADRANT, lever

1шт.

BOLT, 7/16 x 1-1/4 in. mach

1шт.

BOLT, 7/16 x 1-3/4 in. mach

1шт.

WASHER, 7/16 in. lock

2шт.

14

515742R1

PLATE, rockshaft mounting

1шт.

14

511971R2

PLATE, rockshaft mounting

1шт.

SCREW, 1/2 x 1-1/4 in. cap

3шт.

WASHER, 1/2 in. lock

3шт.

15

515743R1

SUPPORT, quadrant, also rockshaft support

1шт.

15

511972R1

SUPPORT, quadrant, also rockshaft support

1шт.

NUT, 1/2 in.

2шт.

BOLT, 1/2 x 1-1/4 in. crg

2шт.

16

511974R1

ANCHOR, spring front

1шт.

BOLT, 7/16 x 1-1/2 in. mach

1шт.

WASHER, 7/16 in. lock

1шт.

17

Q822

BOLT

1/2 x 6 in. mach, w/5-1/8 in. of thd.

1шт.

PO10535

WASHER

17/32 x 1-1/4 in. x 11 ga

1шт.

18

M1425

PLUG

spring

1шт.

19

M1430

VALVE SPRING

SPRING, balance, 1-11/16 in. OD, 14-5/16 in. long, 38 coils

1шт.
