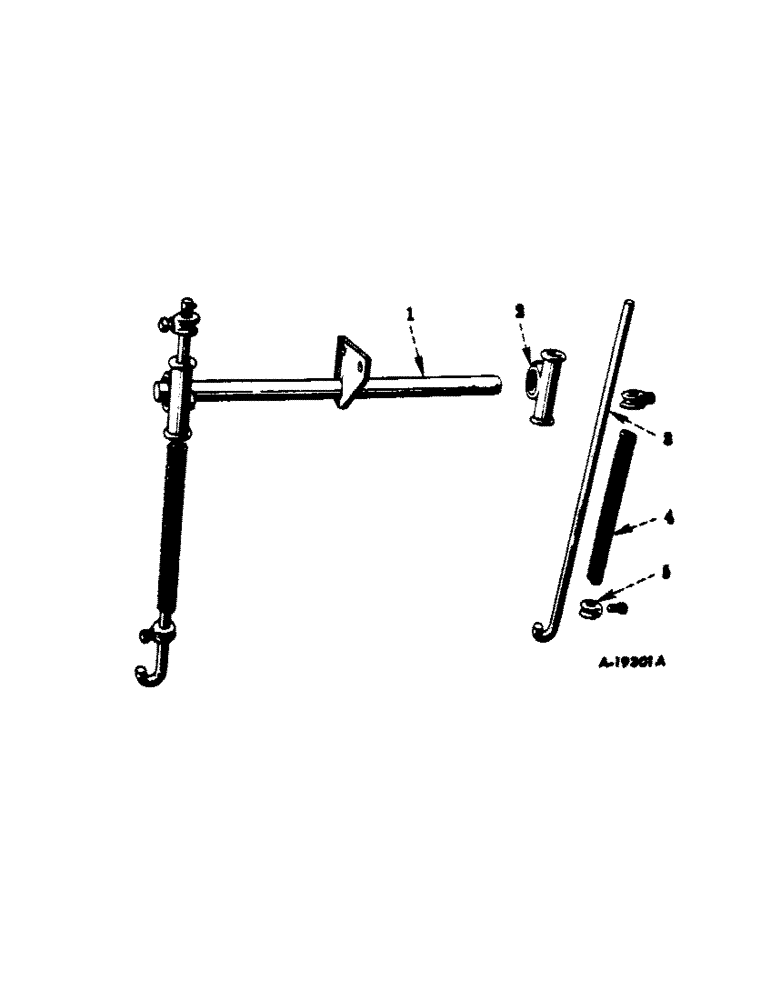

Запчасти Case IH F-144 (B-29) - REAR LIFTING BAR AND PRESSURE ROD

1

511989R92

BAR, lifting, for use with non fast-hitch rear section

1шт.

BOLT, 1/2 x 2-1/4 in. mach

1шт.

BOLT, 1/2 x 2 in. mach

1шт.

PIN, 1/4 x 1-1/2 in. self-opening cotter

4шт.

WASHER, 1/2 in. lock

2шт.

WASHER, 1-1/32 x 1-1/2 in. x 16 ga

4шт.

2

1855B

PIVOT

SWIVEL, pressure spring rod, not used with fast-hitch

1шт.

2

1874B

PIVOT

SWIVEL, pressure spring rod, used with fast-hitch

1шт.

3

511986R1

ROD

pressure spring

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

4

2724BA

SPRING

rod pressure, 1-1/32 in. OD, 11-3/8 in. long, 34 coils

1шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure spring rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.
