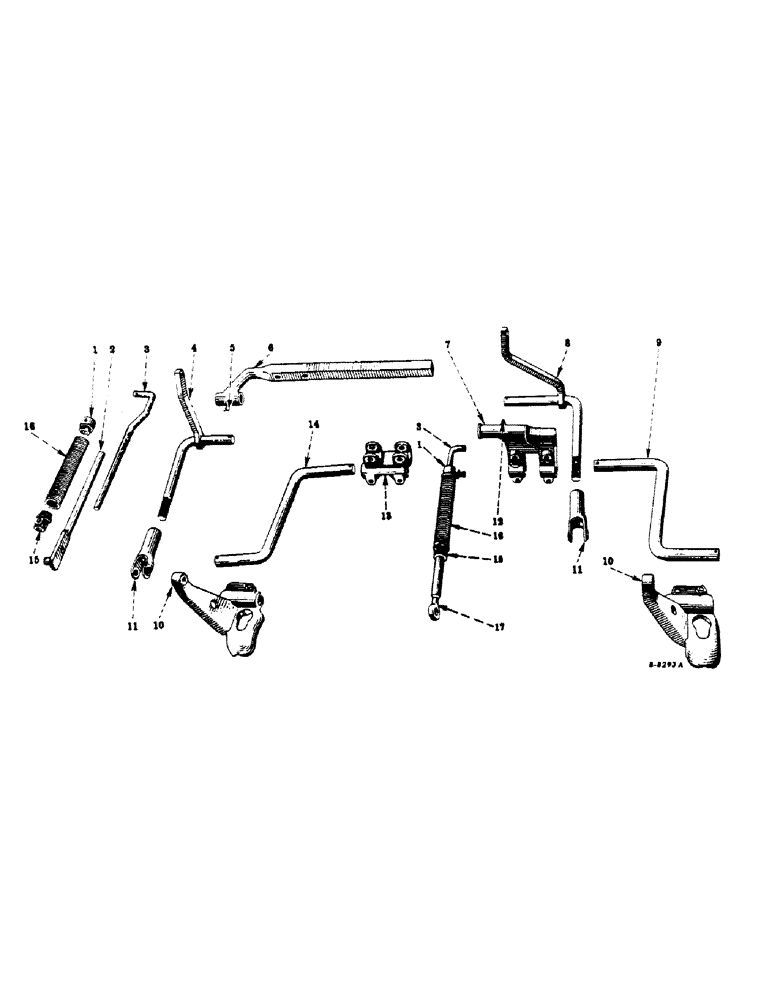

Запчасти Case IH F-144 (B-28) - UNIVERSAL MOUNTING FRAME

1

514609R91

PLUG

W/NUT AND SET SCREW, lift rod spring

1шт.

1

PO3185

PLUG

lift rod spring, order plug assembly 514609R91

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

1шт.

2

519898R91

ROD

PIPE, lifting

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

3

511948R2

EXTENSION

lifting pipe

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

4

516767R11

LINK ASSEMBLY, parallel left

1шт.

516773R1

NUT

1 in. jam

1шт.

13120R1

Pin, Split (Cotter), 3/16" x 1 1/2", self-opening 3/16" x 1 1/2"

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 in. x 16 ga

1шт.

5

109353

FITTING, 1/8 in. 30 degree elbow lubrication

1шт.

6

511960R11

BAR, frame, welded assembly

1шт.

7

511944R12

BRACKET W/CAP SCREWS, gang beam upper right

1шт.

13377R1

BOLT, 7/16 x 2-1/2 in. mach

2шт.

511961R2

BOLT,Hex, 5/8" - 11 x 1 1/2"

SCREW, 5/8 x 1-1/2 in. spec PT cap

4шт.

8

516768R11

LEVER

LINK ASSEMBLY, parallel right

1шт.

516773R1

NUT

1 in. jam

1шт.

13120R1

Pin, Split (Cotter), 3/16" x 1 1/2", self-opening 3/16" x 1 1/2"

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 in. x 16 ga

1шт.

9

511950R2

ROD

BEAM, gang right

1шт.

13157R1

PIN, 1/4 x 2 in. self-opening cotter

2шт.

Q121

WASHER

1-9/32 x 2 in. x 16 ga

2шт.

10

511943R2

CLAMP

gang beam and tool bar

1шт.

17602R1

BOLT, 7/16 x 2-3/4 in. mach

2шт.

NLS

NO LONGER SERVICED

7/16 in.

2шт.

11

516766R1

YOKE

CLEVIS, upper parallel link adjusting

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

512654R1

PIN

5/8 x 2-3/8 in. spec pt headed

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

13

511945R2

BRACKET

gang beam upper left

1шт.

13377R1

BOLT, 7/16 x 2-1/2 in. mach

2шт.

13398R1

BOLT, 7/16 x 2-3/4 in. mach

2шт.

14

511949R2

ROD

BEAM, gang left

1шт.

13157R1

PIN, 1/4 x 2 in. self-opening cotter

2шт.

Q121

WASHER

1-9/32 x 2 in. x 16 ga

2шт.

15

514608R91

PLUG

W/NUT AND SET SCREW, lift pipe spring

1шт.

15

PO3184

PLUG

lift pipe spring, order plug assembly 514608R91

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

1шт.

16

PO27501

SPRING

lifting rod, 1-7/16 in. OD, 9 in. long, 46 coils

1шт.

17

511958R11

PIPE

lifting, welded assembly

1шт.
