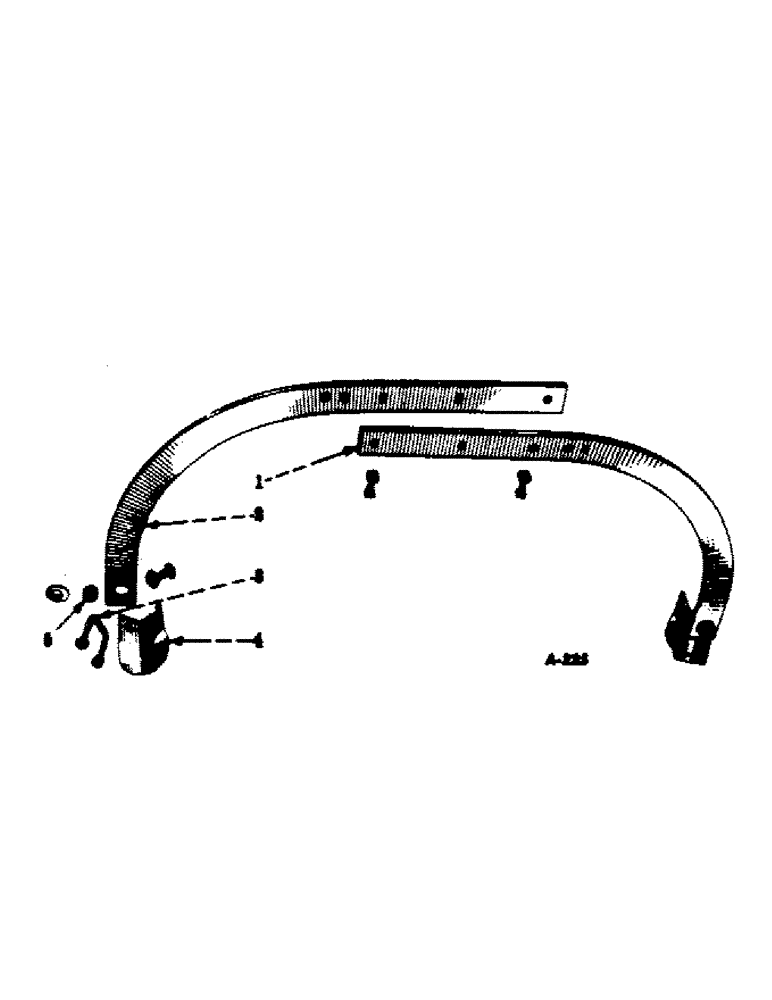

Запчасти Case IH F-144 (B-43) - JOCKEY ARCH / PRODUCT GRAPHICS

1

29965B

ARCH, left

1шт.

2

29964B

ARCH, right

1шт.

BOLT, 3/8 x 1-1/4 in. mach

2шт.

3

27651B

BOLT,1/2" - 13 x 2.56"

U-BOLT

1шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

4

27649B

BRACKET, left

1шт.

4

27650B

BRACKET, right

1шт.

BOLT, 1/2 x 1-1/2 in. mach

2шт.

PO10535

WASHER

17/32 x 1-1/4 in. x 11 ga

2шт.

5

513974R1

BUSHING

1шт.

2750036R3

CUB 144 CULTIVATOR, on RH gang beam

1шт.

2751132R1

INTERNATIONAL, on RH gang beam

1шт.

1001412R2

DECAL

IH, on LH gang beam and lower RH gang beam

2шт.

2751044R1

MCCORMICK INTERNATIONAL, on RH lower gang beam of forward mounting frame

1шт.
