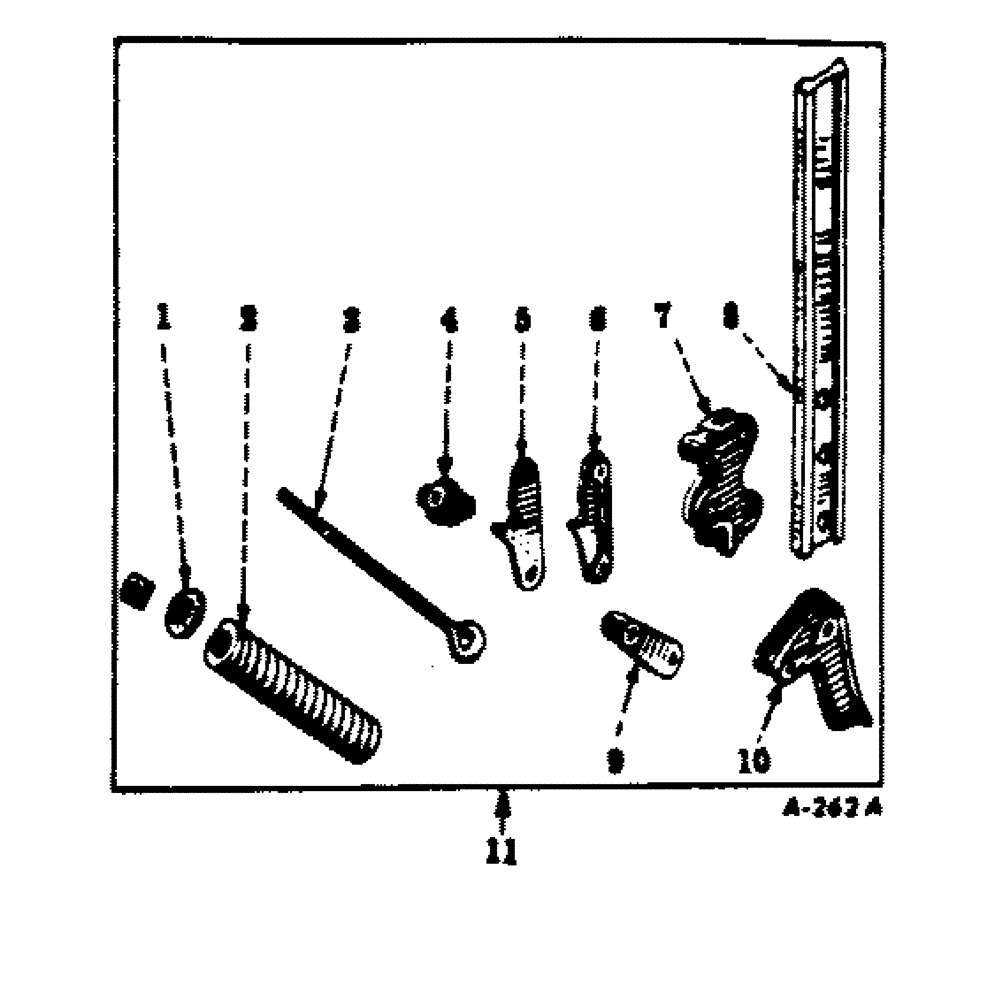

Запчасти Case IH F-144 (B-43[A]) - NUMBER 15 TYPE SPRING TRIP

1

PO593

WASHER, upper spring

1шт.

2

PO102

SPRING

trip, 1-1/4 in. OD, 6-1/8 in. long, 15 coils

1шт.

3

S2247

BOLT, spring

1шт.

NUT, 3/8 in.

1шт.

4

6147

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

WASHER, spring

1шт.

5

6145

JACK

LINK, left upper

1шт.

6

6144

LINK, right upper

1шт.

RIVET, 3/8 x 1-7/8 in. rd-hd

2шт.

7

6146

O-RING

BRACKET, spring

1шт.

RIVET, 3/8 x 1 in. csk-hd

1шт.

RIVET, 3/8 x 1-3/8 in. csk-hd

2шт.

8

29545B

STANDARD, 1-1/2 x 9/16 in.

1шт.

9

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

LINK, lower

1шт.

10

6142

TOOL

SHANK, break-off

1шт.

RIVET, 3/8 x 1-1/2 in. rd-hd

1шт.

RIVET, 7/16 x 1-1/2 in. rd-hd

1шт.

11

29546B

TRIP ASSEMBLY, spring, machine attachment

1шт.
