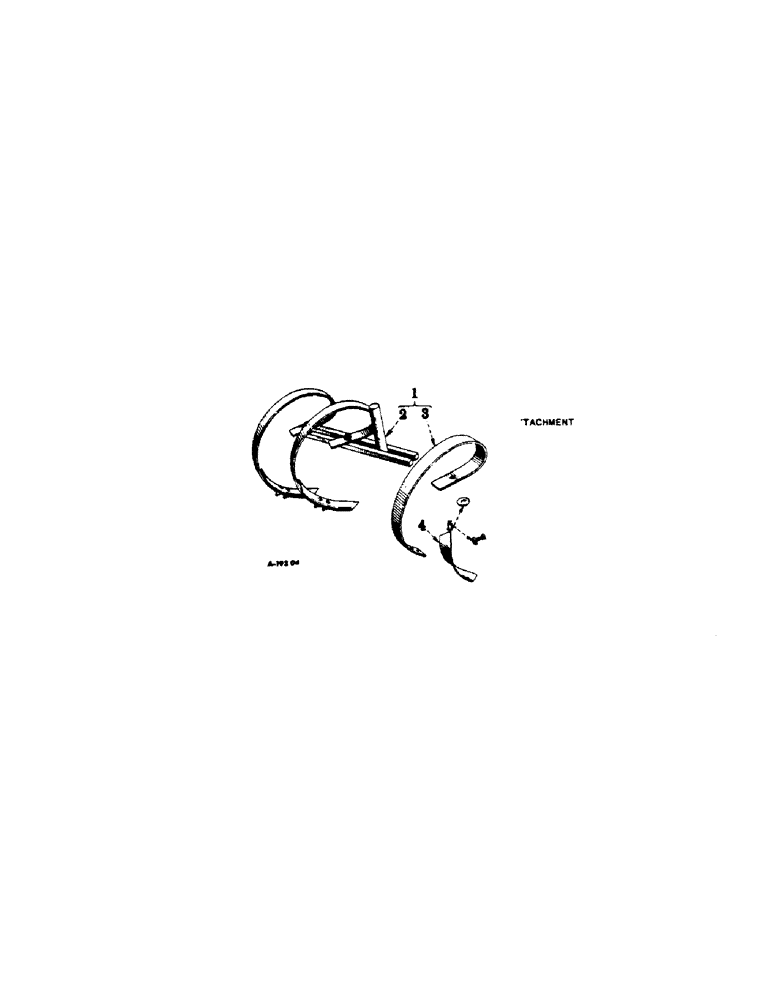

Запчасти Case IH F-144 (B-40[A]) - SPRING TOOTH ATTACHMENT

1

512725R91

FRAME W/TEETH, left

1шт.

1

512724R91

FRAME W/TEETH, right

1шт.

2

512728R91

SUPPORT ASSY.

STANDARD W/BAR

1шт.

3

28361B

SPRING

TOOTH, spring, 1-3/4 in. wide x 1/4 in. thick

1шт.

17497R1

BOLT, 7/16 x 1-3/4 in. mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

N32417

WASHER, 15/32 x 1-25/32 x 8 ga

1шт.

4

25702BA

SHOVEL

double point

1шт.

5

25548BAX

BOLT

W/NUT, 7/16 x 1-1/2 in. spec oval hd shovel

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 in. C-Z

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21029R1

WASHER

15/32 x 1 in. x 11 ga C-Z

1шт.
