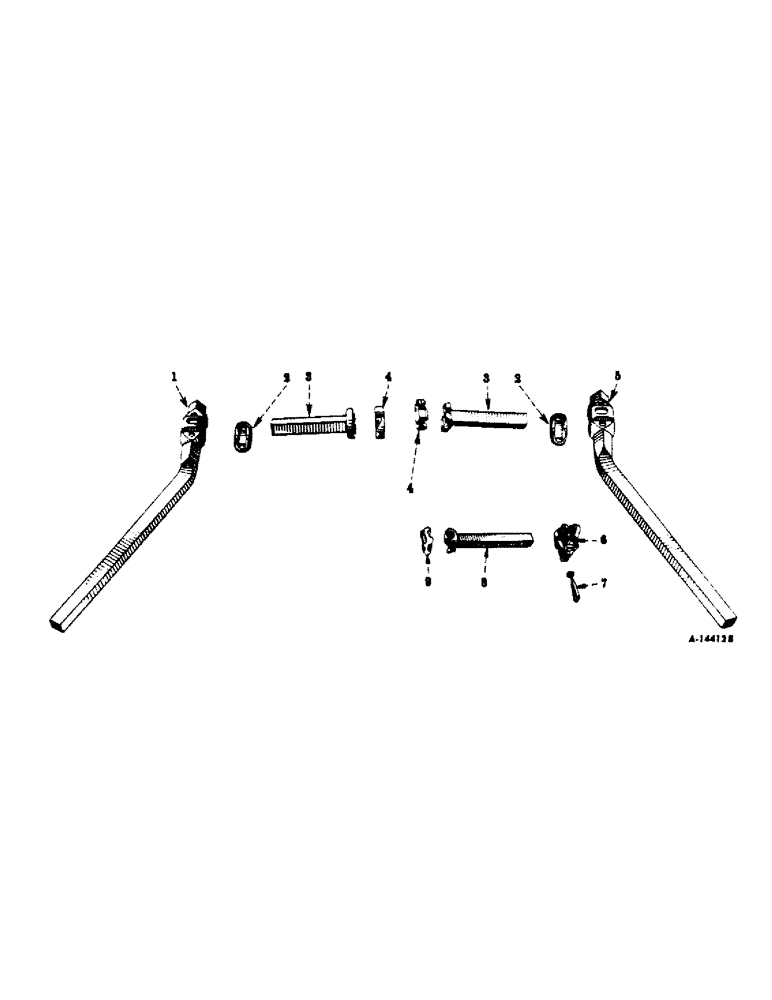

Запчасти Case IH F-144 (B-39) - TOOL BARS, FRONT SECTION

1

513229R1

TOOL BAR, 1-3/8 in. sq, for six sweep spring trip

1шт.

1

518459R1

TOOL BAR, 1-3/8 in. sq

1шт.

2

28256BA

CLAMP, tool bar extension front

1шт.

17723R1

BOLT,Hex, 5/8" - 11 x 4"

5/8 x 4 in. mach

2шт.

3

511992R1

EXTENSION, tool bar front, 1-3/8 in. sq x 9-5/8 in. long

1шт.

4

510918R1

CLAMP

CAP, tool bar front extension

1шт.

13380R1

BOLT, 5/8 x 2-1/2 in. sq-hd mach

2шт.

5

513220R1

TOOL BAR, right, 1-3/8 in. sq, for six sweep spring trip

1шт.

17604R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 3/4", G2

BOLT, 7/8 x 2-3/4 in. mach

2шт.

516808R1

NUT

7/8 in. spec hex

2шт.

5

518460R1

TOOL BAR, right, 1-3/8 in. sq

1шт.

17604R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 3/4", G2

BOLT, 7/8 x 2-3/4 in. mach

2шт.

516808R1

NUT

7/8 in. spec hex

2шт.

6

516216R1

CLAMP

tool bar extension rear

1шт.

17604R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 3/4", G2

BOLT, 5/8 x 2-3/4 in. mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

7

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge

1шт.

102637

NUT,1/2"-13, G5

1шт.

8

29603BA

CLAMP

EXTENSION, tool bar rear, 1-1/4 in. sq. 10-3/4 in. long

1шт.

9

1779BB

CLAMP

CAP, tool bar rear extension

1шт.

29822B

BOLT

1/2 x 2-3/4 in. sq-hd mach, heat treated

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
