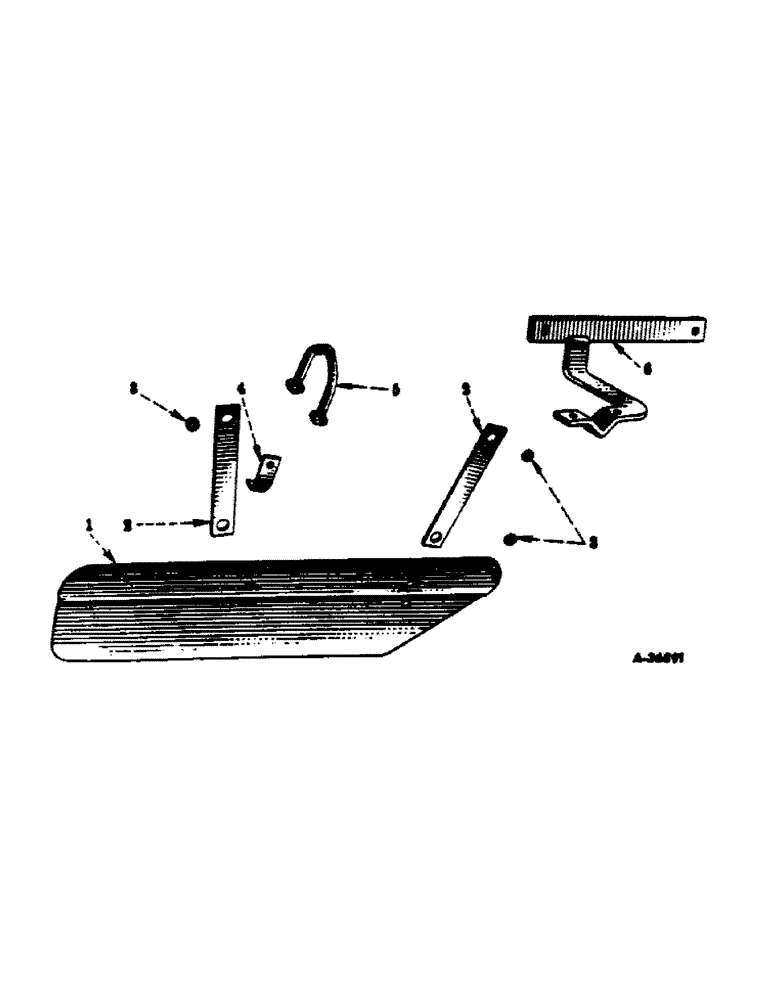

Запчасти Case IH F-144 (B-36) - CULTIVATOR SHIELD, FOR USE WITH SPRING TRIPS

1

512007R1

SUPPORT

SHIELD, left

1шт.

1

512008R1

SHIELD

right

1шт.

BOLT, 3/8 x 1 in. sq-hd mach

4шт.

WASHER, 3/8 in. lock

4шт.

510579R1

WASHER

13/32 x 1-1/4 in. x 16 ga

8шт.

2

511999R1

LINK

pivot

1шт.

3

512836R1

WASHER

BUSHING, pivot link

1шт.

4

515217R1

SUPPORT

CLIP, adjusting

1шт.

5

517711R1

BOLT,3/8" - 16 x 2 1/4"

U-BOLT, attaching brackets

1шт.

NUT, 7/16 in.

2шт.

6

517709R11

BRACKET

attaching left

1шт.

6

517710R11

BRACKET

attaching right

1шт.

BOLT, 3/8 x 1 in. mach

2шт.

BOLT, 3/8 x 1-1/4 in. mach

2шт.

WASHER, 3/8 in. lock

2шт.

WASHER, 7/16 in. external,tooth lock

2шт.

510579R1

WASHER

13/32 x 1-1/4 in. x 16 ga

4шт.
