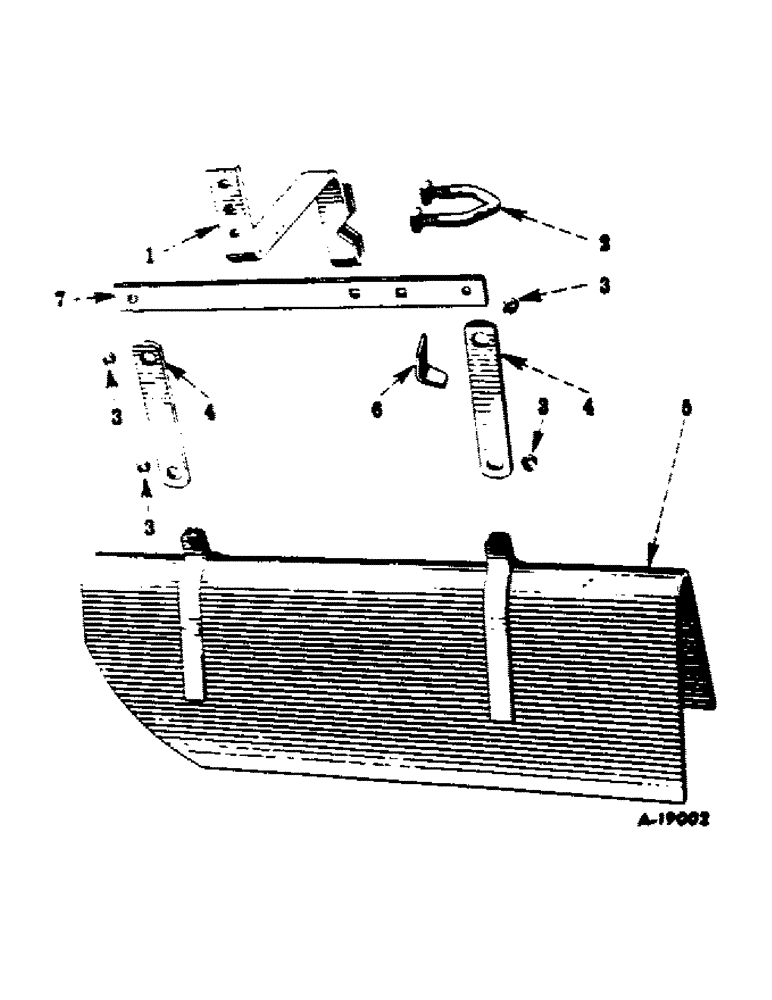

Запчасти Case IH F-144 (B-35) - CULTIVATOR SHIELD, LISTER TYPE

1

513269R1

BRACKET, attaching

1шт.

2

511998R11

BOLT,7/16" - 14 x 3 1/4"

U-BOLT W/NUTS, attaching brackets

1шт.

NUT, 7/16 in.

2шт.

3

512836R1

WASHER

BUSHING, pivot link

1шт.

4

513265R1

LINK, pivot

1шт.

5

513267R91

SHIELD W/STRAPS, welded assembly

1шт.

BOLT, 3/8 x 1 in. sq-hd mach

2шт.

WASHER, 3/8 in. lock

2шт.

6

515217R1

SUPPORT

CLIP, adjusting

1шт.

7

513432R91

SUPPORT, pivot link, welded assembly

1шт.

BOLT, 3/8 x 1 in. crg

1шт.

BOLT, 3/8 x 1 in. mach

1шт.

BOLT, 3/8 x 1-1/4 in. mach

1шт.

WASHER, 3/8 in. lock

2шт.

WASHER, 7/16 in. external, tooth lock

1шт.

510579R1

WASHER

13/32 x 1-1/4 in. x 16 ga

2шт.
