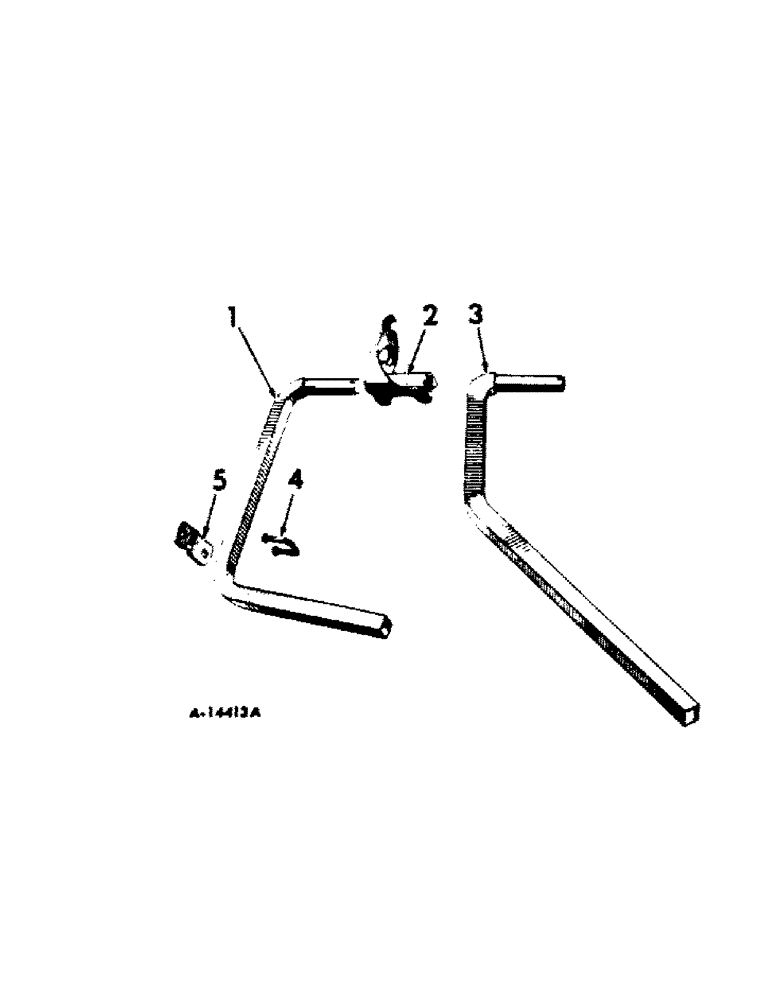

Запчасти Case IH F-144 (B-34) - GANG BEAMS, REAR SECTION

1

511991R1

BEAM, gang rear, 1-3/8 in. sq., for 2 sweep or 6 shovel rear section

1шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

WASHER, 1-9/32 x 2 in. x 16 ga

1шт.

2

511983R2

BEARING

gang beam left, not used with fast-hitch

1шт.

2

511984R2

BEARING HOUSING

gang beam right, not used with fast-hitch

1шт.

BOLT, 7/16 x 2-1/4 in. crg

2шт.

BOLT, 7/16 x 2-1/4 in. mach

2шт.

3

512720R1

BEAM, gang rear, 1-3/8 in sq, for 4 sweep rear section

1шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

WASHER, 1-9/32 x 2 in. x 16 ga

1шт.

4

PO17044A

BOLT

U-BOLT, pressure spring rod bracket

1шт.

NUT, 3/8 in.

2шт.

5

27665BA

BRACKET

pressure spring rod

1шт.
