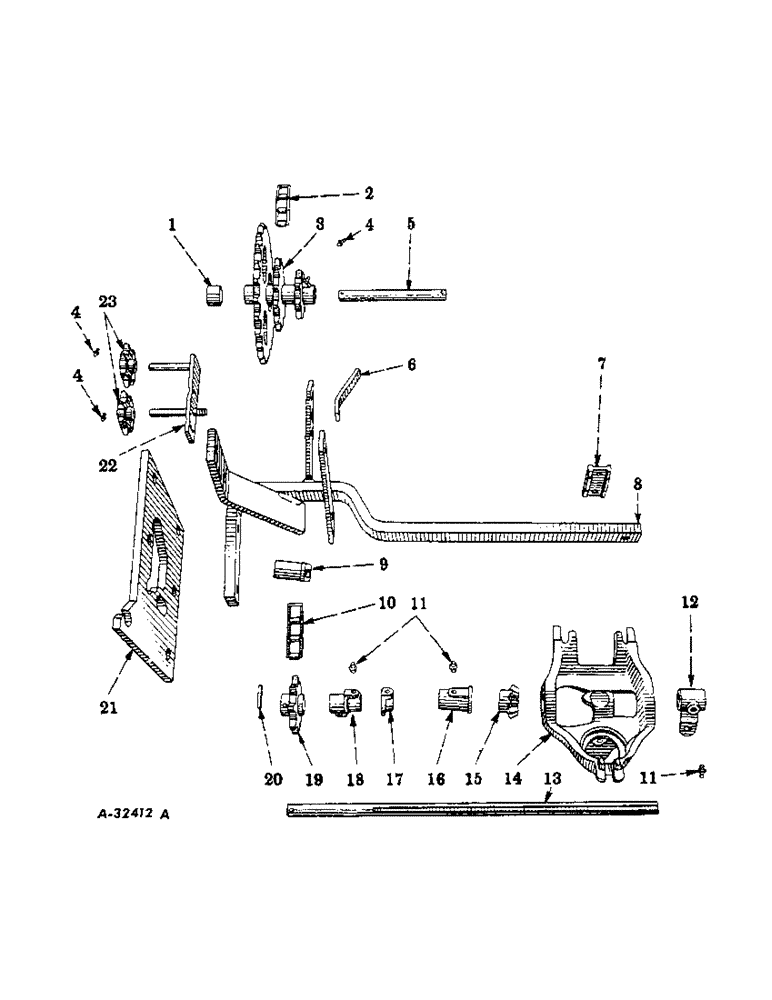

Запчасти Case IH 34-251 (AB-16) - HOPPER ATTACHING BRACKETS

1

3332A

SPACER

2шт.

2

CHAIN, seed plate drive to bracket, use 89 No. 32 steel links from 10 ft roll No. CS-32

2шт.

3

622873R11

SPROCKET W/FITTING, triple

2шт.

4

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 in. straight lubrication

6шт.

5

622874R1

COUNTERSHAFT

2шт.

PIN, 3/16 x 1-1/4 in. cotter

2шт.

PIN, 3/16 x 1-1/4 in. cotter, hammer lock type

2шт.

WASHER, 25/32 x 1-1/8 in. x 22 ga

4шт.

6

621633R1

NUT, hand chain tightener

2шт.

7

621840R1

CLAMP, hopper bracket

2шт.

8

622884R91

BAR ASSEMBLY, fertilizer mounting left

1шт.

8

622885R91

BAR ASSEMBLY, fertilizer mounting right

1шт.

BOLT W/NUT, 5/8 x 1-3/4 in. mach

2шт.

BOLT W/NUT, 5/8 x 2 in. mach

4шт.

WASHER, 5/8 in. lock

6шт.

9

F11007

BOLT

SLIDE, chain

2шт.

BOLT, 3/8 x 1 in. crg

2шт.

NUT, 3/8 in.

2шт.

WASHER, 3/8 in. lock

2шт.

10

CHAIN, countershaft to feed shaft, use 21 No. 32 steel links from 10 ft roll No. CS-32

2шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 in. straight lubrication

5шт.

12

621323R1

BEARING, feed shaft, left only

1шт.

BOLT W/NUT, 3/8 x 1-1/2 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

13

622875R1

SHAFT, hopper drive

2шт.

WASHER, 25/32 x 1-1/8 in. x 22 ga

4шт.

14

620711R3

BRACKET, hopper

2шт.

BOLT W/NUT, 3/8 x 2-1/4 in. mach

4шт.

WASHER, 3/8 in. lock

4шт.

15

3568AA

GEAR

PINION, 10T

2шт.

16

PO1818

BUSHING

BEARING, bracket

2шт.

17

3608A

COLLAR

2шт.

88949

SET SCREW,Sq Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8 in. cup-pt set

2шт.

18

3565A

BEARING

2шт.

PIN, 3/16 x 3/4 in. cotter

2шт.

19

622720R1

SPROCKET, feed shaft, 8T

2шт.

20

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

2шт.

21

622881R1

PLATE, left attaching

1шт.

21

622882R1

PLATE, right attaching

1шт.

SCREW, 5/8-11 NC x 1-1/4 in. conical, HD, Serial Range: 1955-1957

4шт.

SCREW, 5/8-11 NC x 1-3/4 in. conical, HD, 1958 and since

4шт.

22

621635R92

ARM ASSEMBLY, chain tightener

2шт.

PIN, 3/16 x 3/4 in. cotter

4шт.

23

3621AAX

SPROCKET ASSY.

SPROCKET W/LUBRICATION FITTING, idler chain tightener

4шт.

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 in. drive type straight lubrication, in idler chain tightener sprocket

1шт.
