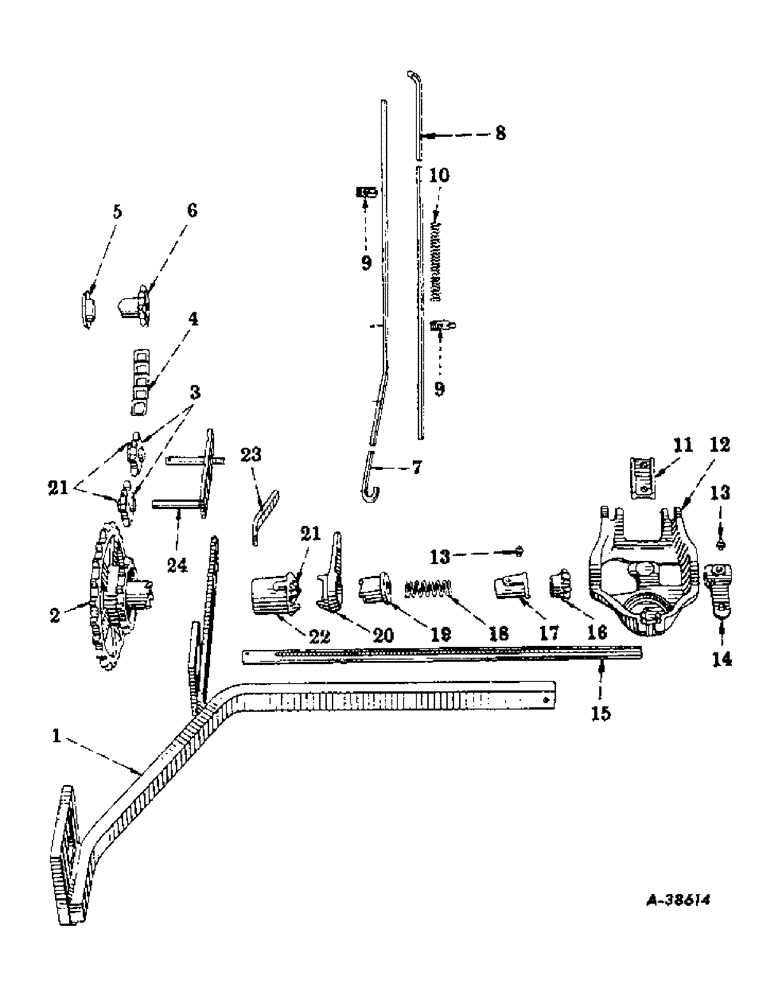

Запчасти Case IH 34-251 (AB-15) - HOPPER DRIVE AND ATTACHING BRACKET

1

624272R91

BRACKET ASSEMBLY, left attaching

1шт.

1

624273R91

BRACKET ASSEMBLY, right attaching

1шт.

BOLT, 3/4 x 1-1/2 in.

4шт.

2

624263R1

SPROCKET, left, 11 and 22T

1шт.

2

624264R1

SPROCKET, right, 11 and 22T

1шт.

3

3621AAX

SPROCKET ASSY.

SPROCKET W/FITTING IDLER

4шт.

4

CHAIN, drive, use 67 No. 32 steel links from 10 ft roll No. CS-32

2шт.

5

624033R1

PLUG, cup, for farmall 400 tractor

2шт.

5

624034R1

PLUG, cup, for farmall 300 tractor

2шт.

6

622166R1

SPROCKET, drive, 7T

2шт.

SCREW, 5/8-18 NF x 3 in.

2шт.

WASHER, 5/8 in. lock

2шт.

7

621751R1

ROD, left throw-cut fertilizer rear

1шт.

7

621752R1

ROD, right throw-out fertilizer rear

1шт.

8

621753R1

ROD, fertilizer throw-out

2шт.

9

621750R11

CLAMP W/SET SCREW, throw-out rod

4шт.

SCREW, 5/16 x 1/2 in. cup-pt sq-hd set

4шт.

10

6644

PLOW BOLT,#3, 7/16" - 14 x 1 1/2", Gr 5

SPRING, throw-out rod

2шт.

11

621840R1

CLAMP, hopper bracket

2шт.

12

620711R3

BRACKET, hopper

2шт.

BOLT W/NUT, 3/8 x 2-1/4 in. hex-hd

4шт.

WASHER, 3/8 in. lock

4шт.

13

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 in. straight lubrication

3шт.

14

621323R1

BEARING, right feed shaft

1шт.

BOLT W/NUT, 3/8 x 1-3/4 in. hex-hd

1шт.

WASHER, 3/8 in. lock

1шт.

15

622265R1

SHAFT, feed

2шт.

PIN, 3/16 x 1-1/4 in. cotter

4шт.

WASHER, 25/32 x 1-1/4 in. x 18 ga

2шт.

16

3568AA

GEAR

PINION, 10T

2шт.

17

PO1818

BUSHING

BEARING

2шт.

18

6653

SPRING, in and out of gear

2шт.

19

1860A

COLLAR, left clutch

1шт.

19

1916AA

COLLAR, right clutch

1шт.

20

620654R1

CAM, left clutch shifter

1шт.

20

620655R1

CAM, right clutch shifter

1шт.

21

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 in. straight lubrication

6шт.

22

624261R11

BEARING W/FITTING, left clutch

1шт.

22

624262R11

BEARING W/FITTING, right clutch

1шт.

PIN, 3/16 x 3/4 in. cotter

2шт.

23

621633R1

HAND NUT

2шт.

24

621635R92

ARM ASSEMBLY, chain tightener

2шт.

PIN, 3/16 x 3/4 in. cotter

4шт.

WASHER, 17/32 x 1 in. x 16 ga

2шт.
