Запчасти Case IH 184 (H-06) - PLANTER ATTACHING UNITS

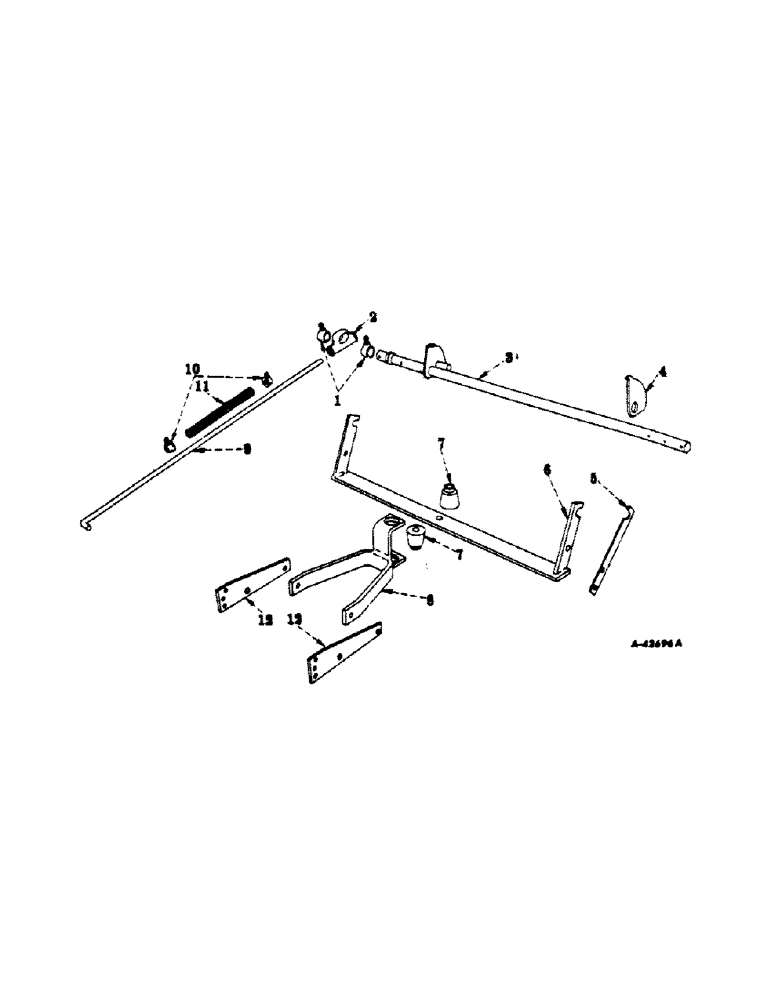

Схема запчастей Case IH 184 - (H-06) - PLANTER ATTACHING UNITS

Артикул

Название

Примечание

Количество

1

2638X

COLLAR

W/SET SCREW, cultivator lifting bar

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 cup-pt sq-hd set

1шт.

2

1855B

PIVOT

SWIVEL, lift rod

1шт.

3

512278R91

TAPPET

BAIL, lifting, welded assembly

1шт.

460309R1

COTTER PIN

PIN, quick-attachable cot.

2шт.

PIN, 1/4 x 1-1/2 x 16 ga

2шт.

4

512277R11

PLATE

SUPPORT, lifting bail left

1шт.

WASHER, 25/32 x 1-1/4 x 16 ga

1шт.

5

522136R1

BRACE, hitch bar

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

WASHER, 1/2 lock

1шт.

6

523215R11

BAR, planter hitch

1шт.

7

PO2051

BUSHING, hitch pivot

1шт.

BOLT W/NUT, 5/8 x 5-1/4 mach

1шт.

WASHER, 21/32 x 1-1/4 x 16 ga

2шт.

8

522135R91

PIVOT, vertical and lateral

1шт.

9

523213R1

ROD, lift, Serial Range: 1957-1960

1шт.

PIN, 3/16 x 1 self-opening cotter

2шт.

9

464280R1

ROD, lift, 1960 and since

1шт.

PIN, 3/16 x 1-1/4 self-opening cotter

1шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

10

5326X

COLLAR

W/SET SCREW, lift rod, Serial Range: 1957-1960

1шт.

88949

SET SCREW,Sq Hd, 5/16" - 18 x 5/8"

SCREW, 3/8 x 1/2 cup-pt sq-hd set

1шт.

10

2638X

COLLAR

W/SET SCREW, lift rod, 1960 and since

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 cup-pt sq-hd set

1шт.

11

PO23

SPRING

lift rod pressure, 1-1/16 OD, 10 in. long, 30-1/2 coils

1шт.

12

523211R1

EXTENSION, planter frame rail

1шт.

BOLT W/NUT, 7/16 x 1-1/4 mach

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

WASHER, 7/16 lock

1шт.

WASHER, 1/2 lock

1шт.

Выбрано товаров: 31
