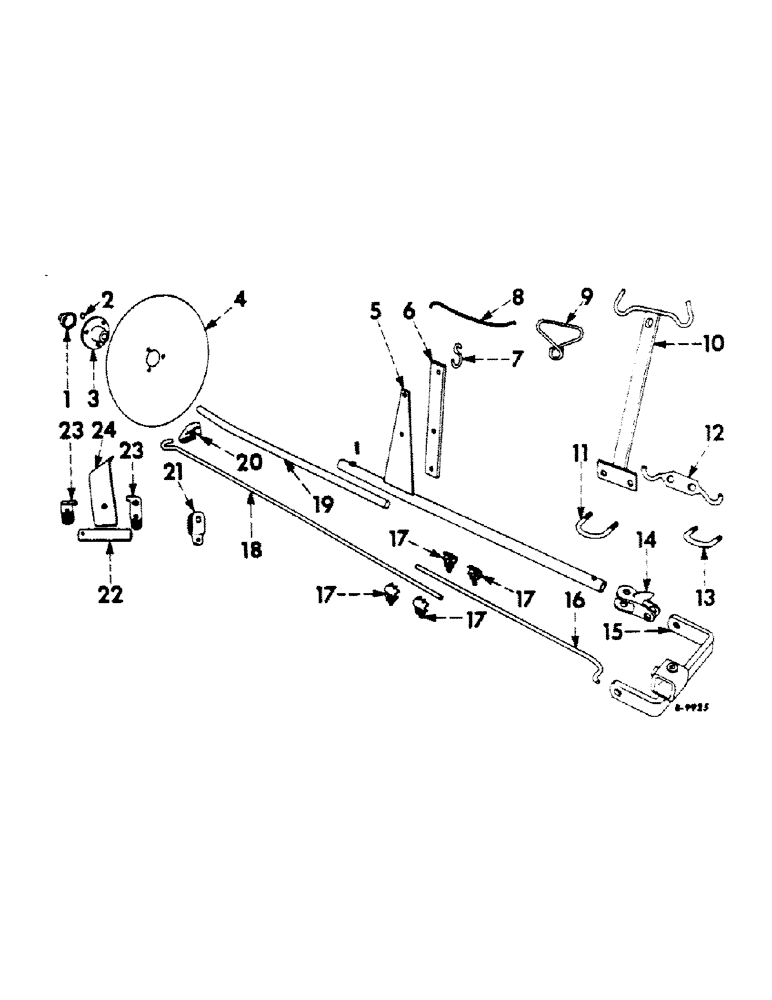

Запчасти Case IH 184 (H-33) - MARKER, TWO-ROW

1

3786

BEARING WASHER

WASHER, hub

1шт.

2

110161

FITTING, 3/16 drive type straight lub.

1шт.

3

PO1752A

HUB, disk

1шт.

4

DISK, marker 14 in., order PO16198

1шт.

RIVET, 5/16 x 7/8 rd-hd

3шт.

4

PO16198

DISK W/HUB, marker 14 in.

1шт.

5

519420R21

PIPE

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW, 3/8 x 1 cup-pt sq-hd set

1шт.

6

524968R1

EXTENSION, lift plate

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

2шт.

7

PO12729

HOOK

extension, -S-

1шт.

8

ROPE, marker, 1/4 x 24 ft., purchase locally

1шт.

9

PO15110A

HANDLE, rope

1шт.

10

(Not used this application)

1шт.

11

(Not used this application)

1шт.

12

(Not used this application)

1шт.

13

(Not used this application)

1шт.

14

PO3162

KNUCKLE, attaching bracket

1шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

PIN, 3/16 x 1 self-opening cot.

1шт.

N62023

PIN, 5/8 x 1-7/16 dld-std-hd

1шт.

15

519303R91

BRACKET, left attaching, Serial Range: 1954-1958

1шт.

15

519304R91

BRACKET, right attaching, Serial Range: 1954-1958

1шт.

15

524977R91

BRACKET, left attaching

1шт.

15

524978R91

BRACKET, right attaching

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

4шт.

16

PO27974

ROD, inner pull

1шт.

17

5938

CLAMP, rod

1шт.

BOLT W/NUT, 3/8 x 1-1/2 crg

1шт.

18

PO26333

ROD, outer pull

1шт.

19

519418R1

AXLE, disk

1шт.

PIN, 1/4 x 1-1/2 self-opening cot.

2шт.

20

PO1428

ANCHOR, pull rod

1шт.

21

4766

TUBE

COLLAR, pull rod

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 3/8"-16 x 1 3/4", G2

1шт.

22

512629R1

SLEEVE, shoe

1шт.

PIN, 1/4 x 1-1/2 self-opening cot.

1шт.

23

PO3232

COLLAR, shoe stop

1шт.

BOLT W/NUT, 3/8 x 1-3/4 mach

1шт.

24

33754A

SHOE, left

1шт.

24

33753A

SHOE, right

1шт.
