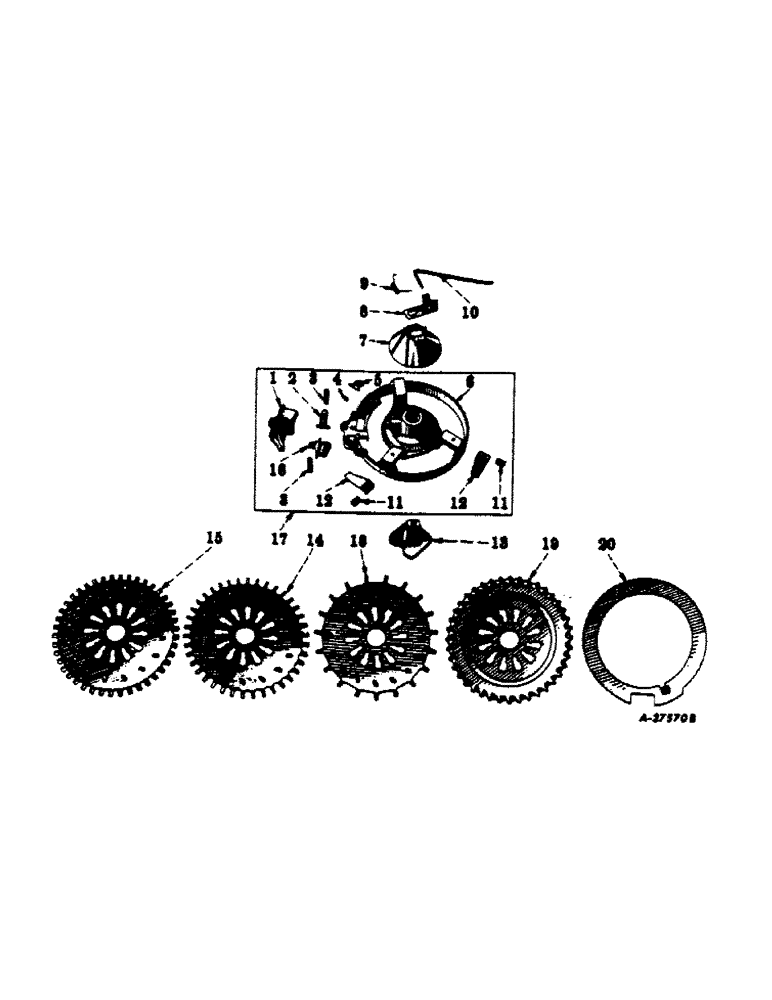

Запчасти Case IH 184 (H-30) - COTTON PLANTING EQUIPMENT, FOR COMBINATION HOPPER

1

621714R2

CAP, cut-off and knocker

1шт.

NUT, 1/4 sq.

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach

1шт.

2

621721R5

KNOCKER

1шт.

3

PO51

SPRING

cut-off and knocker, 3/8 in. OD, 7/8 in. long, 8 coils

1шт.

4

109358

FITTING, 5/16 drive type straight lub.

1шт.

5

13607AB

HINGE

GATE, hinged

1шт.

6

BOTTOM, hopper, order 622185R93

1шт.

7

621716R1

PLATE

agitator

1шт.

8

621725R92

ARM

main piece agitator

1шт.

BOLT W/NUT, 3/8 x 3 crg

1шт.

WASHER, 13/32 x 1-1/8 x 16 ga

1шт.

9

PO26760

SPRING

agitator arm

1шт.

10

622259R1

ARM

agitator

1шт.

11

445135

NUT

seed spring

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

no. 10 x 1/2 slt-rd-hd mach

1шт.

12

PO16047

SPRING, seed flat

1шт.

13

621715R3

STUD

agitator drive

1шт.

14

621717R3

PLATE

seed, 38 large cells, requires 622481R1, filler ring

1шт.

15

621719R3

PLATE

seed, 42 small cells

1шт.

16

621723R1

KNIFE

CUT-OFF

1шт.

17

622185R94

HOPPER

BOTTOM ASSEMBLY, hopper

1шт.

18

622424R1

PLATE

seed, 19 extra large cells, for gin run and reginned cotton, special

1шт.

18

477025R1

PLATE

seed, 16 cell 5/16 x 11/32, for machine delinted cotton seed

1шт.

18

477026R1

PLATE

seed, 16 cell 3/8 x 13/32, for machine delinted cotton seed

1шт.

18

477027R1

PLATE

seed, 16 cell 7/16 x 17/32, for machine delinted cotton seed

1шт.

18

477028R1

PLATE

seed, 16 cell 1/2 x 19/32, for machine delinted cotton seed

1шт.

16

622480R1

PLATE

seed, 40 small tin cells, for acid and machine delinted cotton seed, requires 622481R1 filler ring

1шт.

20

622481R1

RING

filler, for 621717R3 and 622480R1 seed plates

1шт.
