(H-28) - DRIVE PLATE, FOR TYPE C DUPLEX HOPPER, WHEN USED ON COMBINATION HOPPER BRACKET

Запчасти Case IH 184 (H-28) - DRIVE PLATE, FOR TYPE C DUPLEX HOPPER, WHEN USED ON COMBINATION HOPPER BRACKET

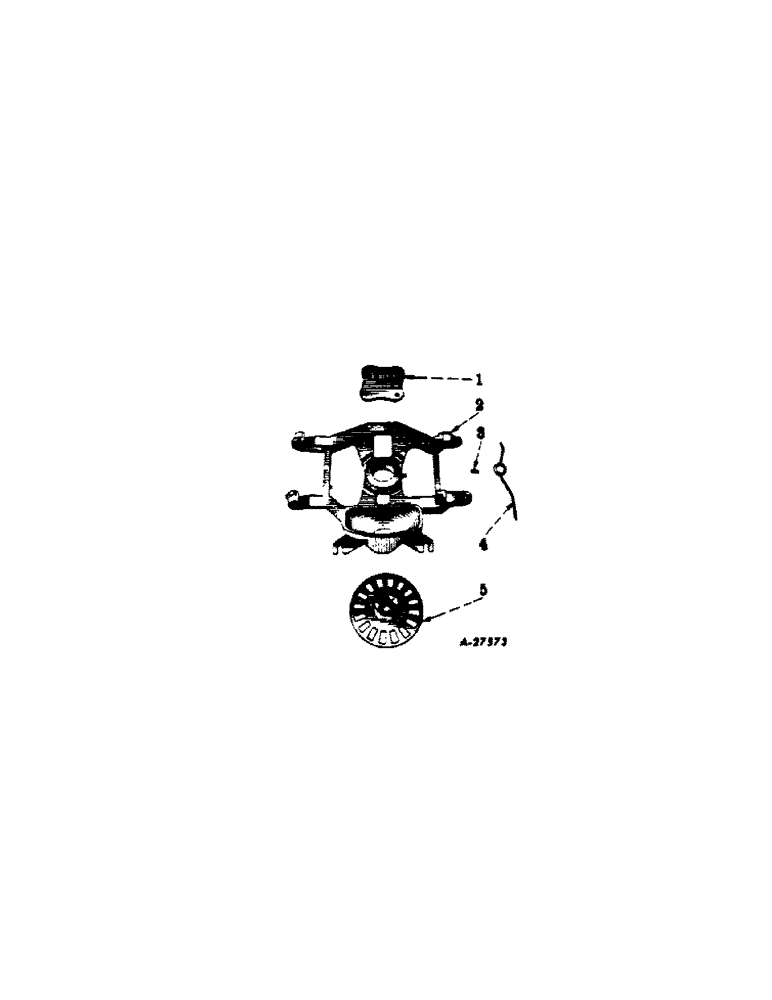

Схема запчастей Case IH 184 - (H-28) - DRIVE PLATE, FOR TYPE C DUPLEX HOPPER, WHEN USED ON COMBINATION HOPPER BRACKET
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

517093R1

PLATE, drive

1шт.

2

517091R11

BRACKET, W/FITTING, adapter

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

Q3532

AXLE PIN

PIN, 5/16 x 2-11/16 dld-std-hd

1шт.

3

109358

FITTING, 5/16 drive type straight lub.

1шт.

4

PO17885

SPRING, hopper hold-down

1шт.

5

517092R1

PLATE, bearing

1шт.

BOLT W/NUT, 3/8 x 3/4 sq-hd mach

1шт.

WASHER, 3/8 lock

1шт.
