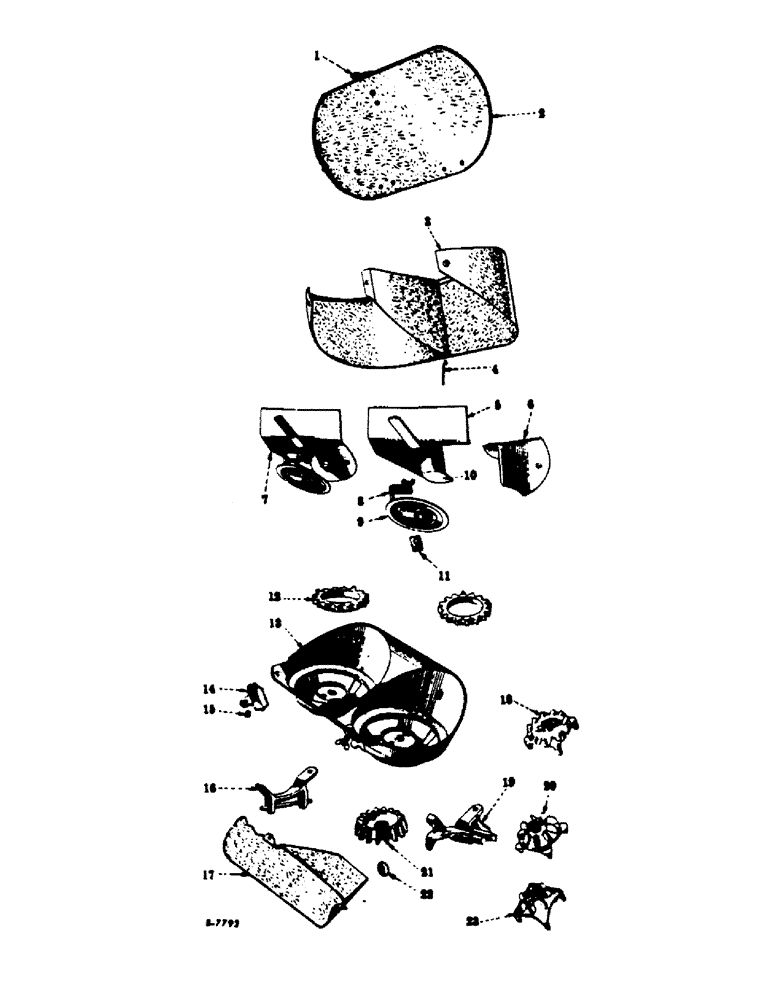

Запчасти Case IH 184 (H-27) - TYPE C DUPLEX HOPPER

1

CP14292

LATCH, hopper lid

1шт.

104490

RIVET, 3 lb. size tinners

4шт.

2

511924R22

LID W/LATCH

1шт.

3

511925R23

JACKET ASSEMBLY, hopper

1шт.

NUT, 1/4 sq

3шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach

3шт.

4

CP14236

SCREW, no. 10 x 1-3/4 slt-rd-hd mach

1шт.

NUT, no. 10 sq

1шт.

WASHER, 13/64 x 1/2 x 16 ga

1шт.

5

CPA14336

DEFLECTOR, main, order R17112

1шт.

6

CPA14337

DEFLECTOR, reversible, order R17112

1шт.

NUT, no. 10 sq

2шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

SCREW, no. 10 x 3/8 slt-rd-hd mach

2шт.

WASHER, 3/16 lock

2шт.

7

R17112

DEFLECTOR, assembly, composed of (1) deflector CPA14336 (1) deflector CPA14337 (1) gate R17111

1шт.

8

R17110

POST, deflector

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

RIVET, 3/16 x 1/2 f-hd

1шт.

9

RA7037

PLATE, spur gear covering

1шт.

10

R17111

GATE, deflector, order R17112

1шт.

RIVET, 3 lb tinners

1шт.

11

N42087

RETAINER, bolt

1шт.

NUT, 1/4 sq

2шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach

2шт.

12

CPC5131

GEAR, spur, 16 T

1шт.

13

CPC5130

BOTTOM, hopper

1шт.

BOLT, 5/16 x 3/4 crg

2шт.

BOLT, 3/8 x 3/4 sq-hd mach

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 wing

1шт.

WASHER, 3/8 lock

2шт.

14

CP5139

VALVE, left shut-off

1шт.

14

CP5136

VALVE, right shut-off

1шт.

BOLT, 5/16 x 1-1/4 sq-hd mach

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 wing

2шт.

15

R17107

SPRING, shut-off valve, 15/32 in. OD, 1/2 in. long, 3 coils

1шт.

16

CPA5099

SUPPORT, hopper left

1шт.

BOLT, 5/16 x 1 no. 3 plow

2шт.

17

CPA14378

SPOUT ASSEMBLY

1шт.

BOLT, 1/4 x 1/2 crg

2шт.

WASHER, 1/4 lock

2шт.

18

CPD5012

PINION, drive, 12 T

1шт.

BOLT, 3/8 x 1-1/2 sq-hd mach

1шт.

WASHER, 3/8 lock

1шт.

19

CPB5098

SUPPORT, hopper right

1шт.

BOLT W/NUT, 5/16 x 1 no. 3 plow

1шт.

BOLT W/NUT, 5/16 x 1-3/4 no. 3 plow

1шт.

PIN, 1/8 x 1 cotter

1шт.

20

CPD5011

PINION, drive, 9 T

1шт.

21

CPB5004

GEAR, bevel, 16 T

1шт.

22

620483R1

WASHER, thrust

1шт.

23

CPB5145

PINION, drive, 10 T

1шт.

23

CPB5010

PINION, drive, 6 T

1шт.

23

R7012

PINION, drive, 7 T

1шт.
