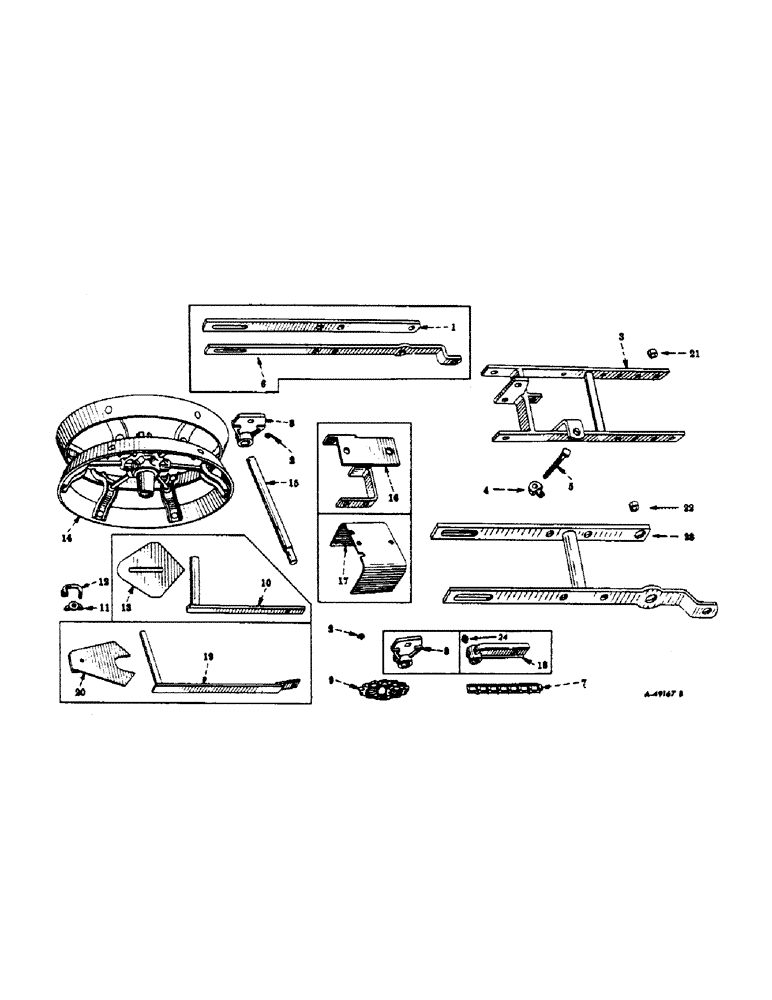

Запчасти Case IH 184 (H-03) - MAIN FRAME, PRESS WHEEL AND SCRAPERS

1

523201R1

RAIL, press wheel short, 1957

1шт.

1

524388R1

RAIL, press wheel short, Serial Range: 1958-1960

1шт.

2

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type straight lub, in 16 in. wheel axle bearing

1шт.

3

523200R91

FRAME, planter, 1957

1шт.

3

524387R91

FRAME, planter, Serial Range: 1958-1960

1шт.

3

464269R92

FRAME, planter, 1960 and since

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

2шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 C-Z hex-hd mach

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

102637

NUT,1/2"-13, G5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z crg

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

188755R1

WASHER

15/32 x 1-1/2 x 11 ga C-Z

2шт.

178586

WASHER, 7/16 C-Z int-ext tooth lock

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

522101R1

PIVOT

SWIVEL, depth adjusting

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

5

524611R1

BOLT,Hex, 1/2" x 4 3/4"

depth adjusting, 1/2 x 4-3/4, 4 in. of thread

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

6

523202R1

RAIL, press wheel long, 1957

1шт.

6

624389R1

RAIL, press wheel long, Serial Range: 1958-1960

1шт.

7

CHAIN, drive, use 33 no. 32 steel links from a 10 ft roll no. CS-32

1шт.

7

CHAIN, drive, use 9 no. 32 steel links from a 10 ft roll no. CS-32, extra links required for 20 in. wheels

1шт.

8

523194R1

BEARING, axle, for 16 in. dia wheel

1шт.

BOLT W/NUT, 7/16 x 1-1/4 crg

1шт.

WASHER, 7/16 lock

1шт.

WASHER, 15/32 x 1-1/4 x 11 ga

1шт.

9

PO1763

DRIVE SPROCKET

SPROCKET, 7-T

1шт.

9

515502R21

SPROCKET ASSY.

SPROCKET W/SET SCREW, 14 T

1шт.

9

PO575AX

SPROCKET ASSY.

SPROCKET W/SET SCREW, 8 T

1шт.

9

PO2704AX

SPROCKET ASSY.

SPROCKET W/SET SCREW, 10 T

1шт.

9

PO2639BX

SPROCKET ASSY.

SPROCKET W/SET SCREW, 12 T

1шт.

9

PO3215X

SPROCKET ASSY.

SPROCKET W/SET SCREW, 13 T

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-std-hd

1шт.

10

523237R12

ARM, wheel scraper, for 16 in. dia wheel

1шт.

NLS

NO LONGER SERVICED

7/16

1шт.

15040

LARGE PLATE,Sht Sq Nk, 7/16" x 1 1/2"

BOLT, 7/16 x 1-1/2 short sq-nk crg

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

11

129-410

WING NUT,3/8"-16

scraper bolt 3/8 in. wing

1шт.

12

PO27883

BOLT, scraper attaching

1шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

1шт.

13

PO27879

SCRAPER, for 16 in. dia wheel

1шт.

14

524331R92

WHEEL ASSY, open center press, 20 in. dia

1шт.

14

POW457B

WHEEL ASSY, open center press, 16 in. dia

1шт.

PIN, 1/8 x 3/4 cot.

1шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

PIN, 1/4 x 1-3/4 dld-std-hd

1шт.

15

523212R1

ROD

AXLE, wheel

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1-3/4 C-Z std-hd

1шт.

137180

COTTER PIN,1/8" x 7/8"

PIN, SPLIT (COTTER), 1/8" x 7/8"

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

3шт.

PO12898

WASHER

29/32 x 1-1/2 x 16 ga, for 20 in. dia wheel

1шт.

16

523196R91

BRACKET, hopper mounting, 1957 and since

1шт.

17

524390R2

BRACKET, hopper mounting, 1958 and since

1шт.

BOLT, 1/2 x 1-1/4 mach

4шт.

WASHER, 1/2 lock

4шт.

18

524393R1

CYLINDER END CAP

BEARING, axle, for 20 in. dia wheel

1шт.

BOLT W/NUT, 7/16 x 1-1/4 crg

1шт.

WASHER, 7/16 lock

1шт.

WASHER, 15/32 x 1-1/4 x 11 ga

1шт.

19

524418R11

ARM, left wheel scraper, for 20 in. dia wheel

1шт.

19

524642R91

ARM, right wheel scraper, for 20 in. dia wheel

1шт.

15040R1

BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2"

7/16 x 1-1/2 short sq-nk crg

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex, for 20 in. dia wheel

1шт.

20

13504AB

SCRAPER

1шт.

15039R1

BOLT

3/8 x 1-1/2 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

21

464271R1

BEARING

BUSHING, plaiting frame, 1960 and since

1шт.

22

464276R1

BUSHING, press wheel rail pivot, 1960 and since

1шт.

23

464272R92

FRAME, press wheel, 1960 and since

1шт.

24

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/2 straight lub, in 20 in. wheel axle bearing

1шт.
