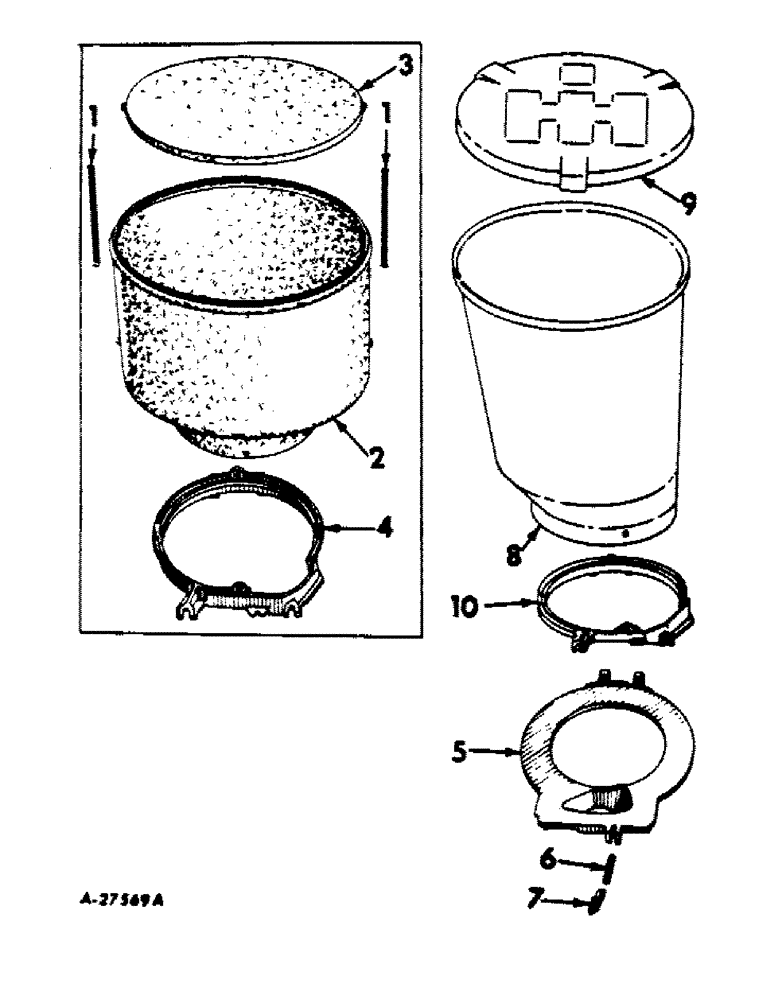

Запчасти Case IH 184 (H-24) - COMBINATION HOPPER

1

622125R1

SPRING

lid, 11/32 OD, 7-1/2 long, 128-1/2 coils

1шт.

2

622135R93

HOPPER, for lid spring

1шт.

2

626466R91

HOPPER, Serial Range: 1958-1964

1шт.

3

622134R91

LID, hopper, for lid spring

1шт.

3

626484R1

LID, hopper, Serial Range: 1958-1964

1шт.

4

621703R3

RING, hopper bottom

1шт.

114660

SCREW, 5/16 x 3/8 slt-rd-hd mach

4шт.

5

488815R1

PLATE, hopper bottom

1шт.

5

488816R1

RING

PLATE, wear ring, used w/hopper bottom

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

M95023

PIN, 5/16 x 3-5/8 dld-std-hd

1шт.

6

606245R1

SPRING

latch, 1962 and since

1шт.

6

526

SPRING, latch, .351 in. OD, 1-1/2 in. long, 11 coils, 1961 and prior

1шт.

7

621710R1

LATCH

hopper bottom plate

1шт.

PIN, 3/16 x 1 cotter

1шт.

8

478559R1

HOPPER

fiberglass offset seed, 1964 and since

1шт.

9

474852R1

COVER

polyethylene offset seed hopper, 1964 and since

1шт.

10

478563R1

RING

combination hopper bottom, for fiberglass hopper, 1964 and since

1шт.

SCREW, 5/16 x 3/8 C-Z slt-rd-hd mach

4шт.
