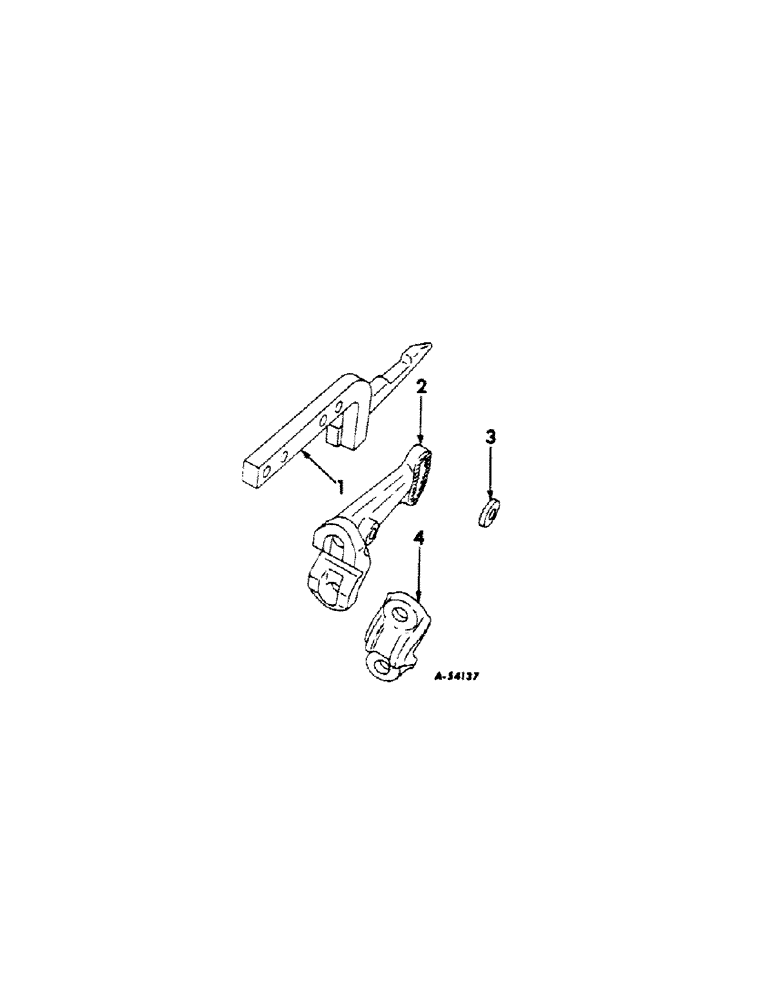

Запчасти Case IH 184 (H-23) - COUPLING BEAMS

1

524906R91

BEAM, right coupling, for 3 in. fast-hitch sockets

1шт.

1

524905R91

BEAM, left coupling, for 3 in. fast-hitch sockets

1шт.

NUT, 3/4

2шт.

SCREW, 3/4 x 4 cap

2шт.

WASHER, 3/4 lock

2шт.

2

521087R2

BRACKET

coupling beam attaching

2шт.

SCREW, 7/8UNF x 4-1/2 cap

2шт.

SCREW, 7/8UNF x 4-3/4 cap

2шт.

3

521084R2

WASHER

coupling beam serrated

2шт.

NUT, 7/8UNF

4шт.

NUT, 3/4

2шт.

SCREW, 3/4 x 3-3/4 cap

2шт.

WASHER, 3/4 lock

2шт.

4

523962R2

CLAMP

bracket

2шт.
