Запчасти Case IH 184 (H-22[A]) - SEAT ATTACHMENT, FOR REAR MOUNTED 2-1/4 OR 2-1/2 SQ. TOOL BAR

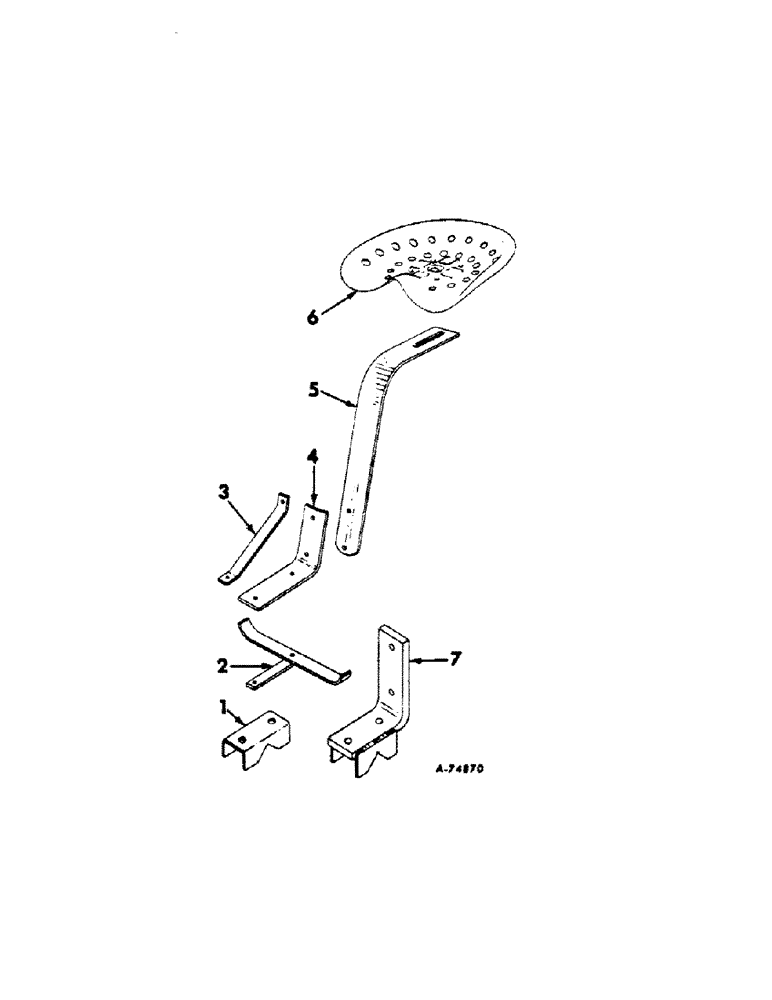

Схема запчастей Case IH 184 - (H-22[A]) - SEAT ATTACHMENT, FOR REAR MOUNTED 2-1/4 OR 2-1/2 SQ. TOOL BAR

Артикул

Название

Примечание

Количество

1

520534R2

BRACKET, attaching

1шт.

BOLT W/NUT, 5/8 x 6-1/4 mach

2шт.

WASHER, 5/8 lock

2шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

2

520531R11

REST, foot

1шт.

3

PO12057

BRACE, seat spring

1шт.

4

PO12058

EXTENSION, set spring

1шт.

5

S5578

SPRING, seat

1шт.

BOLT W/NUT, 7/16 x 1-1/2 mach

1шт.

BOLT W/NUT, 7/16 x 1-3/4 mach

1шт.

WASHER, 7/16 lock

2шт.

WASHER, 15/32 x 1-1/4 x 16 ga

1шт.

6

MB488B

SEAT

1шт.

BOLT W/NUT, 7/16 x 1-1/4 crg

1шт.

WASHER, 15/32 x 1-1/4 x 16 ga

1шт.

7

462414R11

BRACKET, mounting

1шт.

BOLT W/NUT, 1/2 x 2 mach

1шт.

BOLT W/NUT, 1/2 x 2-1/2 mach

1шт.

WASHER, 1/2 lock

2шт.

Выбрано товаров: 19
