Запчасти Case IH 184 (H-21[A]) - DISK HILLER, 13 IN.

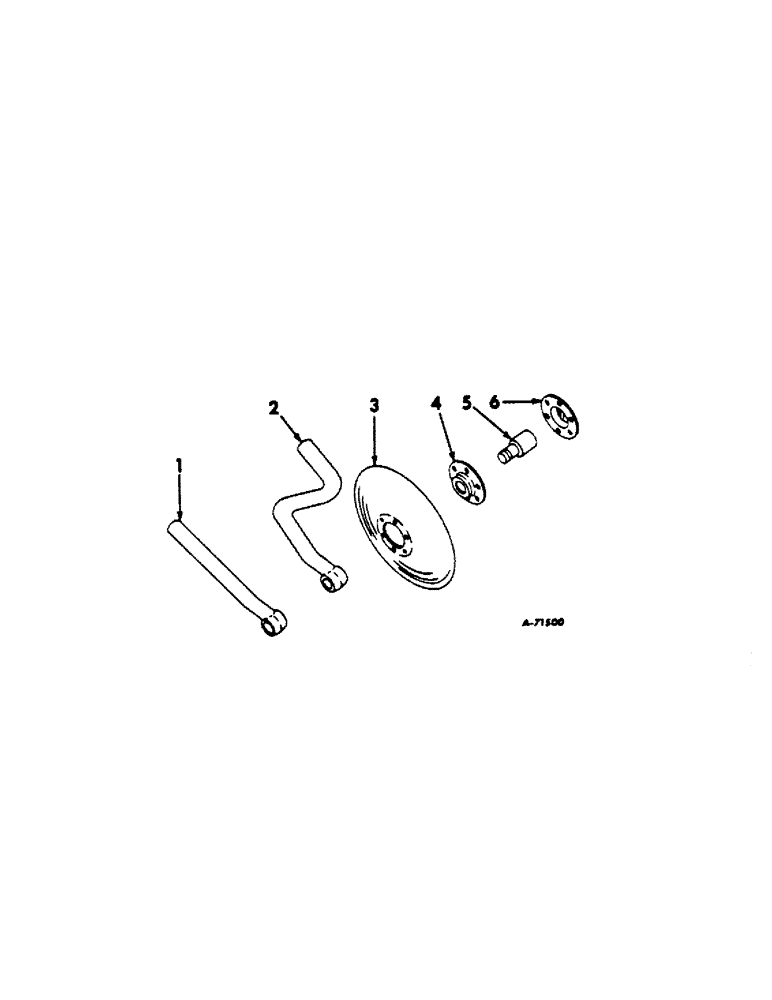

Схема запчастей Case IH 184 - (H-21[A]) - DISK HILLER, 13 IN.

Артикул

Название

Примечание

Количество

1

469373R1

SUPPORT ASSY.

STANDARD, straight

1шт.

138711

SCREW, 3/8 x 7/16 hex-soc-hd ov-pt set

1шт.

2

469374R1

SUPPORT ASSY.

STANDARD, offset

1шт.

138711

SCREW, 3/8 x 7/16 hex-soc-hd ov-pt set

1шт.

3

469372R1

DISC,13"

DISK, 13 in.

1шт.

NUT, 5/16 C-Z

8шт.

SCREW, 5/16 x 3/4 C-Z cap

6шт.

WASHER, 5/16 C-Z lock

6шт.

4

468009R1

RETAINER

HOUSING, bearing, open half

1шт.

5

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

1шт.

6

468008R1

COVER

HOUSING, bearing, closed half

1шт.

Выбрано товаров: 11
