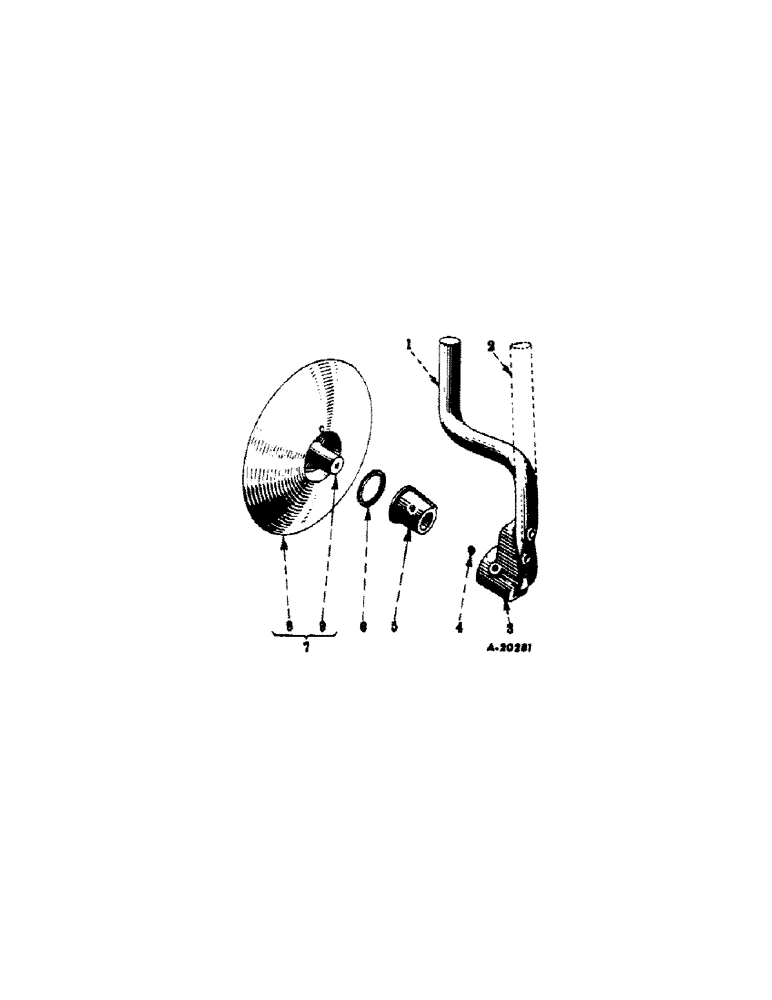

Запчасти Case IH 184 (H-17) - DISK HILLERS

1

524392R1

STANDARD, 1-1/2 in. offset, 1-1/4 in. dia

1шт.

1

29238B

STANDARD, 6-1/2 in. offset, 1-1/4 in. dia

1шт.

2

29514B

STANDARD, straight, 1-1/4 in. dia

1шт.

RIVET, 7/16 x 1-1/2 rd-hd

2шт.

3

1438BX

BRACKET W/SET SCREW, standard

1шт.

102907

SET SCREW,Sq Hd, 7/16"-14 x 1"

SCREW, 7/16 x 1 cup-pt sq-hd set

1шт.

4

110161

FITTING, 3/16 drive type straight lub.

1шт.

5

1436BA

SLEEVE CYLINDER

SLEEVE

1шт.

BOLT W/NUT, 3/8 x 3-3/8 crg

1шт.

WASHER, 3/8 lock

1шт.

25608B

WASHER

7/16 x 1-3/4 x 10 ga

1шт.

6

M1

WASHER

felt

1шт.

7

25458BB

HUB CAP

DISK W/HUB

1шт.

8

29955B

DISC

DISK, 13 in. dia

1шт.

9

1894BA

HUB CAP

HUB, disk

1шт.

RIVET, 5/16 x 1 truss-hd

6шт.
