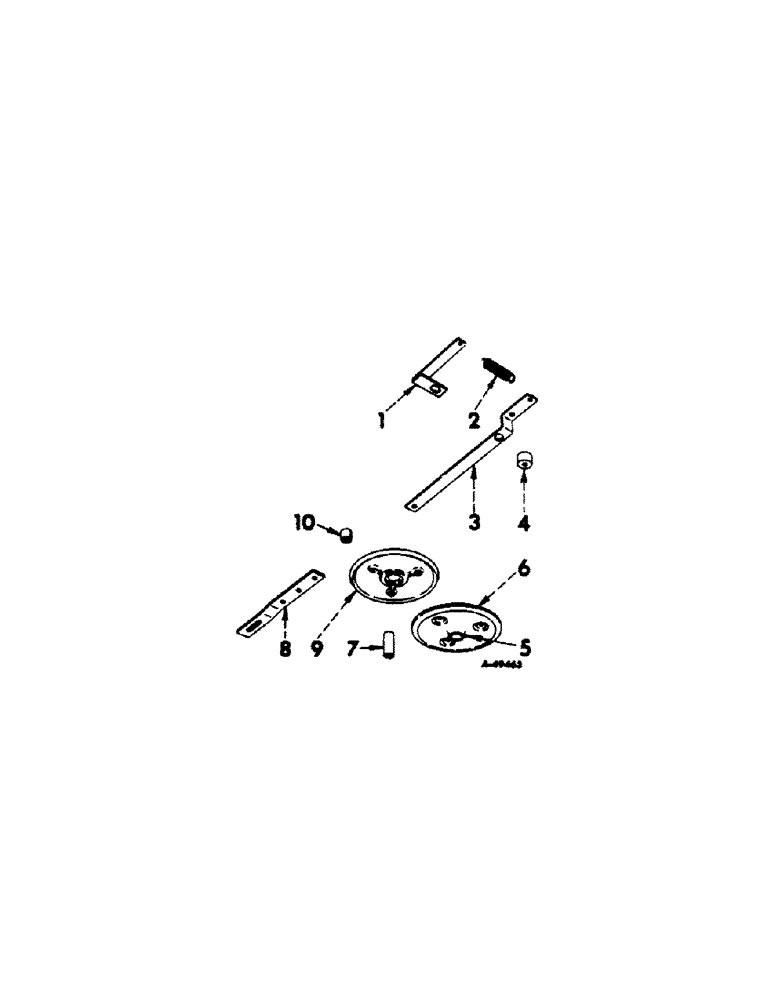

Запчасти Case IH 184 (H-15) - SEED FIRMING WHEEL

1

524984R91

ANCHOR ASSY, spring

1шт.

2

PO16

SPRING

pressure

1шт.

PIN, 1/4 x 1 self-opening cot.

2шт.

3

524981R1

RAIL, frame

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

3/8 x 3-1/2 hex-hd mach

1шт.

17697R1

BOLT, 3/8 x 3-1/4 hex-hd mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

102635

NUT,3/8"-16, G5

3шт.

4

520523R1

SPACER, press wheel rail

2шт.

5

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type straight lub.

1шт.

6

524732R11

WHEEL

W/BUSHING AND FITTING, half

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 mach

3шт.

109054

NUT, 1/4-20 hex.

3шт.

7

524734R1

BUSHING

wheel

1шт.

8

524980R1

EXTENSION, press wheel rail

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16-14 x 1-1/4 short-sq-nk crg

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

9

524733R11

WHEEL ASSY.

WHEEL W/BUSHING, half

1шт.

10

524735R1

BUSHING

wheel half, brz

1шт.

CHAIN, drive, use 14 no. 32 steel links from a 10 ft. roll no. CS-32

1шт.

622359R1

TYRE/TIRE

TIRE, 1 x 10 in. zero pressure

1шт.
