Запчасти Case IH 184 (H-14[A]) - DISK COVERS, FOR NO. 184 PLANTER UNIT

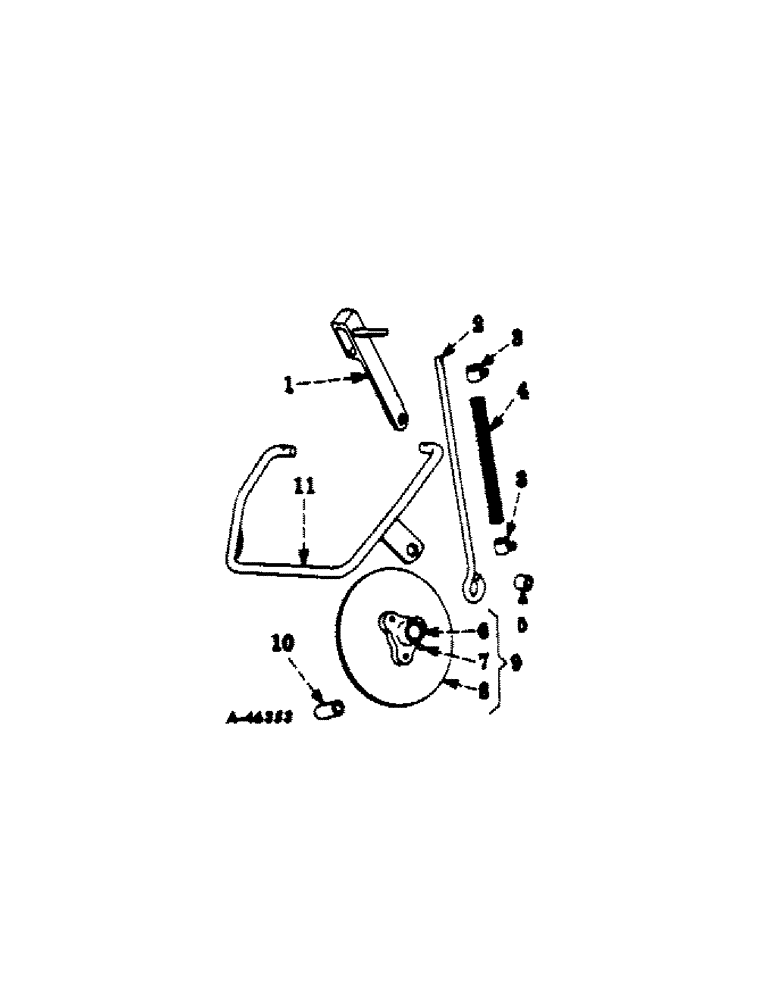

Схема запчастей Case IH 184 - (H-14[A]) - DISK COVERS, FOR NO. 184 PLANTER UNIT

Артикул

Название

Примечание

Количество

1

523339R21

CLAMP W/SET SCREW, yoke left

1шт.

1

523240R21

CLAMP W/SET SCREW, yoke right

1шт.

102893

SCREW, 3/8 x 5/8 cup-pt sq-hd set

1шт.

2

520473R1

ROD, pressure

1шт.

PIN, 1/8 x 3/4 self-opening cot.

1шт.

WASHER, 13/32 x 1 x 16 ga

1шт.

3

517951R11

WEAR PAD

COLLAR W/SET SCREW

1шт.

105111

FITTING

SCREW, 5/16 x 3/8 cup-pt sq-hd set

1шт.

4

W16153

SPRING, pressure rod

1шт.

5

S4954

SPACER

BUSHING, pressure rod

1шт.

6

517948R21

DISC

HUB W/FITTING

1шт.

BOLT W/NUT, 7/16 x 3-1/4 mach

1шт.

WASHER, 15/32 x 1 x 16 ga

1шт.

WASHER, 15/32 x 1-1/4 x 16 ga

1шт.

7

110161

FITTING, w/16 in. drive type straight lubrication

1шт.

8

DISK, covering, not serviced separately order 623128R12

1шт.

RIVET, 3/16 x 11/16 rd-hd

3шт.

9

623128R12

DISC

DISK ASSY

1шт.

10

517958R2

BUSHING

disk hub

1шт.

11

517953R11

YOKE, disk

1шт.

PIN, 3/16 x 1 self-opening cot.

1шт.

Выбрано товаров: 21
