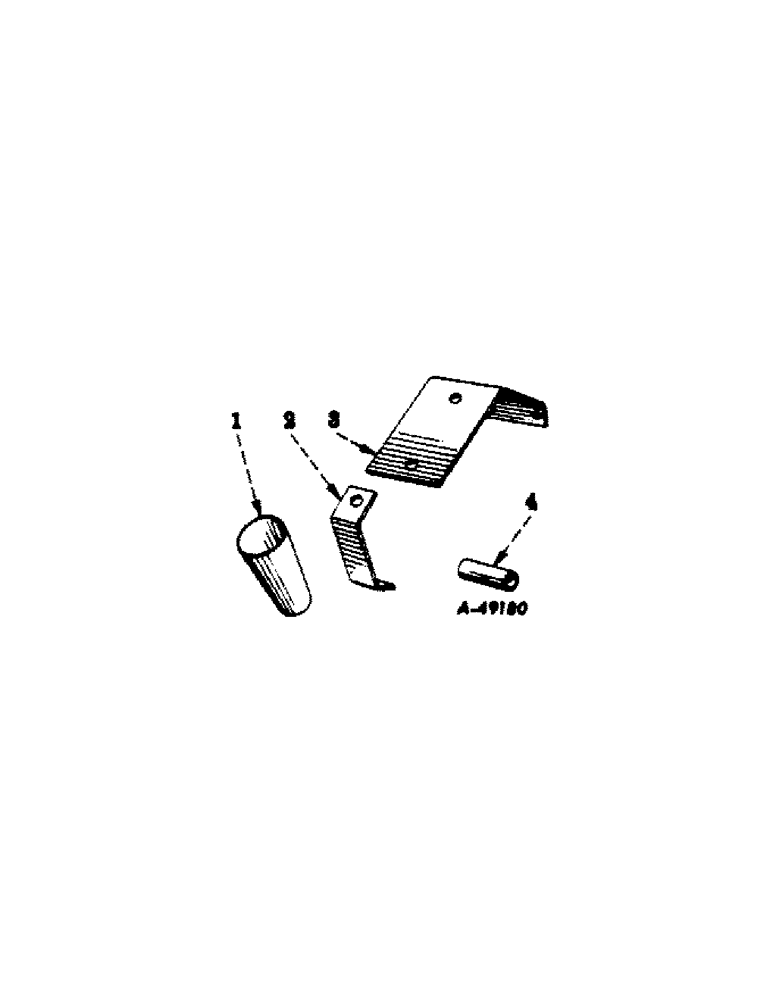

Запчасти Case IH 184 (H-13) - ADAPTING PARTS, PARTS NECESSARY TO ADAPT COLE DUPLEX PLANTER

1

523236R1

SPROUT, seed intermediate

1шт.

2

523324R1

BRACE, adapting bracket

1шт.

3

523230R1

BRACKET, hopper adapting

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

BOLT W/NUT, 1/4 x 3/4 mach

2шт.

BOLT W/NUT, 3/8 x 1 mach

1шт.

WASHER, 3/8 lock

1шт.

WASHER, 1/2 lock

1шт.

4

523235R1

BUSHING, sprocket

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga, for feed shaft between sprocket bushing and bearing

1шт.
