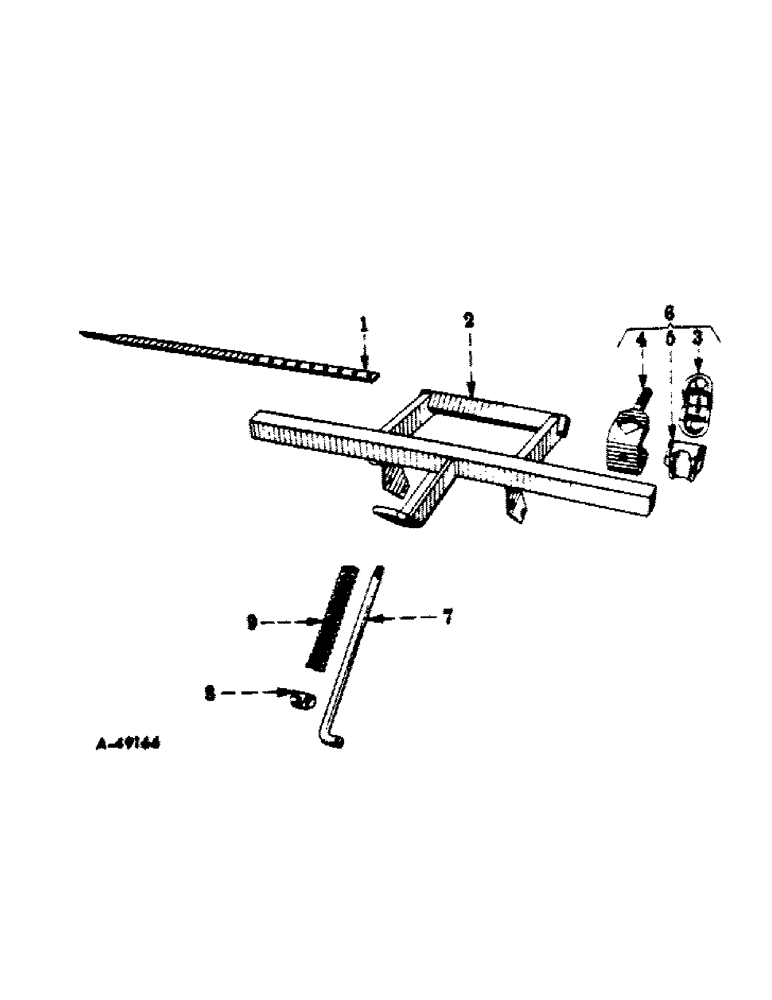

Запчасти Case IH 184 (H-11[A]) - DOUBLE TOOL BAR

1

522231R1

BAR, row spacing guide left, 1957

1шт.

1

523232R1

BAR, row spacing guide right, 1957

1шт.

512353R1

PIN, quick-attachable cot.

3шт.

4837S

HEADED PIN,3/8" x 1"

PIN, 3/8 x 1 dld-std-hd

1шт.

Q3536

PIN

3/8 x 2-3/8 dld-std-hd

2шт.

2

523224R91

TOOL BAR, double, 1957

1шт.

2

524381R91

TOOL BAR, double, 1958 to 1960, order 464283R91 and (2) 76730H

1шт.

2

464283R92

TOOL BAR, double, 1960 and since

1шт.

3

28256BA

CAP, u-bolt

1шт.

4

29600BAX

U-BOLT

W/NUTS, clamp

1шт.

NUT, 5/8

2шт.

5

1875B

CLAMP

BLOCK, u-bolt

1шт.

6

CLAMP ASSY, front tool bar standard

1шт.

7

464278R1

ROD, pressure, 1960 and since

1шт.

NUT, 5/8

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

1шт.

7

523217R1

ROD, pressure, Serial Range: 1957-1960

1шт.

NUT, 1/2

1шт.

PIN, 3/16 x 1 cot.

1шт.

8

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, 1960 and since

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

8

5326X

COLLAR

W/SET SCREW, Serial Range: 1957-1960

1шт.

102892

SET SCREW

3/8 x 1/2 cup-pt sq-hd set

1шт.

9

523267R1

SPRING

pressure rod

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga, on planter frame hitch bolt, 1960 and since

1шт.
