Запчасти Case IH 184 (H-08) - PLANTER ATTACHING UNIT

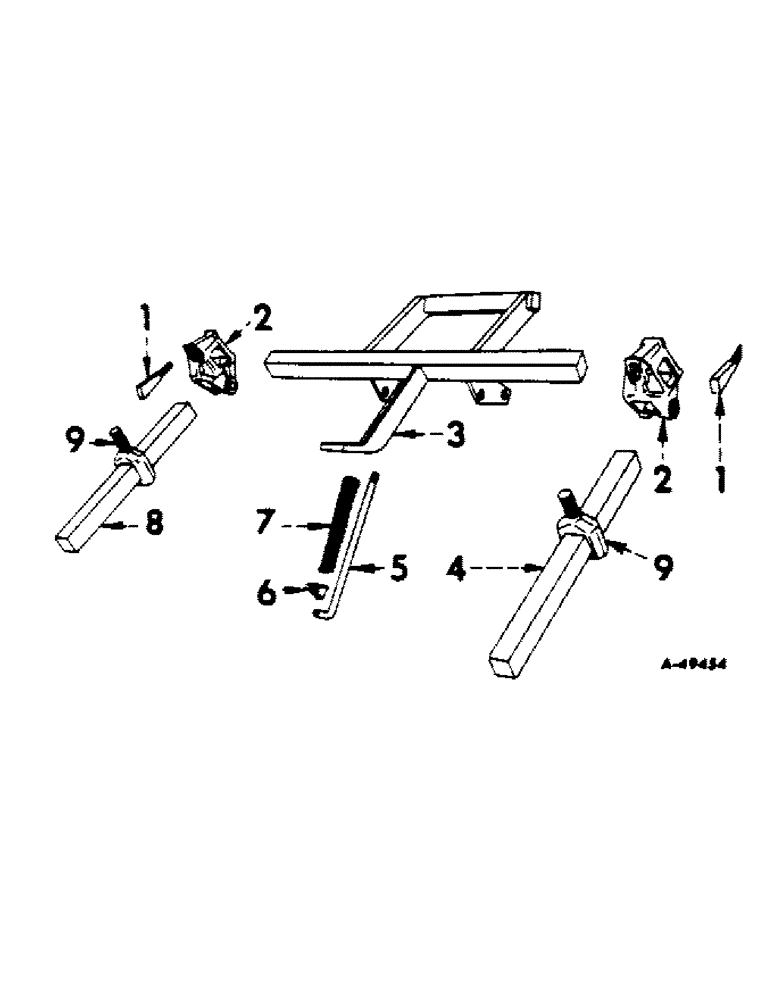

Схема запчастей Case IH 184 - (H-08) - PLANTER ATTACHING UNIT

Артикул

Название

Примечание

Количество

1

27585B

BOLT

W/NUT, wedge

1шт.

NUT, 1/2

1шт.

2

519283R1

CLAMP, tool bar attaching

1шт.

BOLT W/NUT, 5/8 x 2-3/4 mach

1шт.

3

524381R91

TOOL BAR, double, 1957 to 1960, order 464283R91 and (2) 76730H

1шт.

3

464283R92

TOOL BAR, double, 1960 and since

1шт.

4

519299R11

TOOL BAR W/EYEBOLT AND NUT, long

1шт.

5

523217R1

ROD, pressure, Serial Range: 1957-1960

1шт.

NUT, 1/2

1шт.

PIN, 3/16 x 1 self-opening cotter

1шт.

5

464278R1

ROD, pressure, 1960 and since

1шт.

NUT, 5/8

1шт.

PIN, 3/16 x 1-1/4 self-opening cotter

1шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

6

5326X

COLLAR

W/SET SCREW, pressure rod, Serial Range: 1957-1960

1шт.

102892

SET SCREW

3/8 x 1/2 cup-pt sq-hd set

1шт.

6

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set, 1960 and since

1шт.

110147

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

7

523267R1

SPRING

pressure rod

1шт.

8

524913R91

TOOL BAR W/EYEBOLT AND NUT, short

1шт.

9

518255R1

EYEBOLT, tool bar attaching

1шт.

30537B

NUT

7/8 conical

1шт.

Выбрано товаров: 22
